isaac_ros_cumotion

Source code on GitHub.

Motion Generation

The motion generation capabilities provided by the cuMotion planner node are exposed via a plugin for MoveIt 2. Please see the corresponding quickstart to get started.

Robot Segmentation

Quickstart

Set Up Development Environment

  1. Set up your development environment by following the instructions in getting started.

  2. Clone isaac_ros_common under ${ISAAC_ROS_WS}/src.

    cd ${ISAAC_ROS_WS}/src && \
       git clone https://github.com/NVIDIA-ISAAC-ROS/isaac_ros_common.git

  3. (Optional) Install dependencies for any sensors you want to use by following the sensor-specific guides.

    Warning

    We strongly recommend installing all sensor dependencies before starting any quickstarts. Some sensor dependencies require restarting the Isaac ROS Dev container during installation, which will interrupt the quickstart process.

Download Quickstart Assets for Robot Segmentation

  1. Download the r2b_robotarm dataset from the r2b 2024 dataset on NGC

  2. Place the dataset at ${ISAAC_ROS_WS}/isaac_ros_assets/r2b_2024/r2b_robotarm.

Build isaac_ros_cumotion
  1. Launch the Docker container using the run_dev.sh script:

    cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
    ./scripts/run_dev.sh

  2. Install the prebuilt Debian package:

    sudo apt-get install -y ros-humble-isaac-ros-cumotion


Run Launch File for Robot Segmentation

  1. Continuing inside the docker container, run the following launch file to spin up a demonstration of robot segmentation for a single camera using the rosbag:

    ros2 launch isaac_ros_cumotion robot_segmentation.launch.py

  2. Open a second terminal inside the Docker container:

    cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
    ./scripts/run_dev.sh

  3. Run the rosbag file to simulate an image stream:

    ros2 bag play --clock -l ${ISAAC_ROS_WS}/isaac_ros_assets/r2b_2024/r2b_robotarm \
    --remap /camera_1/aligned_depth_to_color/image_raw:=/depth_image \
    camera_1/color/camera_info:=rgb/camera_info

  4. Open a third terminal inside the Docker container:

    cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
    ./scripts/run_dev.sh

  5. Run a static transform publisher, used by the segmentation node to determine the relative pose of the robot base:

    ros2 run tf2_ros static_transform_publisher --frame-id ar_tag --child-frame-id  base_link --x -0.30 --y 0.47 --z 0.0 --qx 0 --qy 0 --qz 0.707 --qw 0.707


Visualize Results of Robot Segmentation

  1. Open a new terminal inside the Docker container:

    cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
       ./scripts/run_dev.sh

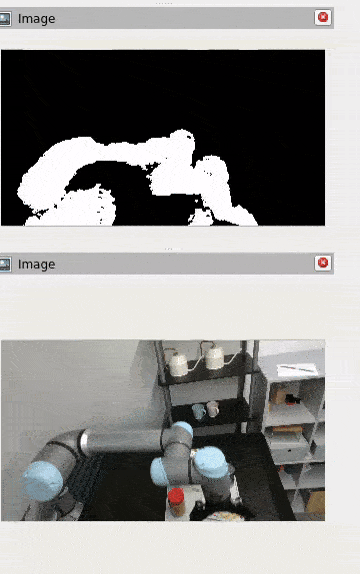

  2. Visualize the robot mask in RViz:

    rviz2


    Then click on the Add button and select By topic. In the By topic window, select the topic /cumotion/camera_1/robot_mask.

    Optionally, you can also add the camera image to the RViz window by selecting the topic /camera_1/color/image_raw. This will allow you to confirm that the robot mask correctly matches the camera image.

    Note

    Due to initial warm-up time, the visualization may take up to 1 minute to appear. During this time, the depth mask may stutter or lag behind the camera image.

    https://media.githubusercontent.com/media/NVIDIA-ISAAC-ROS/.github/main/resources/isaac_ros_docs/repositories_and_packages/isaac_ros_cumotion/isaac_ros_cumotion/cumotion_rviz.gif/

Troubleshooting

Isaac ROS Troubleshooting

For solutions to problems with Isaac ROS, see troubleshooting.

API

CumotionActionServer

ROS Parameters

ROS Parameter

Type

Default

Description

robot

string

ur5e.yml

Path to the XRDF file for the robot

urdf_path

string

rclpy.Parameter.Type.STRING

Path to the robot’s URDF

time_dilation_factor

float

0.5

Speed scaling factor for the planner

collision_cache_mesh

int

20

Number of mesh objects to pre-allocate in the cuMotion world

collision_cache_cuboid

int

20

Number of cuboid objects to pre-allocate in the cuMotion world

interpolation_dt

float

0.02

Fixed time step (in seconds) used for interpolating the trajectory

voxel_dims

float array

[2.0, 2.0, 2.0]

Maximum dimensions of the voxels in meters

voxel_size

float

0.05

Size of a voxel in meters

read_esdf_world

bool

false

When true, indicates that cuMotion should read a Euclidean signed distance field (ESDF) as part of its world

publish_curobo_world_as_voxels

bool

false

When true, indicates that cuMotion should publish its world representation

add_ground_plane

bool

false

When true, indicates that cuMotion should add an implicit ground plane

publish_voxel_size

float

0.05

Voxel size to use when publishing cuMotion’s world

max_publish_voxels

int

50000

Maximum number of voxels that may be used to publish cuMotion’s world

joint_states_topic

string

/joint_states

Topic for reading the robot’s joint state

tool_frame

string

rclpy.Parameter.Type.STRING

Tool frame of the robot that should be used for planning

grid_position

float array

[0.5, 0.5, 0.5]

Grid position at which to place cuMotion’s world

esdf_service_name

string

/nvblox_node/get_esdf_and_gradient

Service to call when querying the ESDF world

enable_curobo_debug_mode

bool

false

When true, cuMotion’s backend planning library (currently cuRobo) will log additional debug messages

override_moveit_scaling_factors

bool

false

When true, the planner is allowed to override MoveIt’s scaling factors

ROS Topics Subscribed

ROS Topic

Interface

Description

joint_states_topic

sensor_msgs/JointState

Joint states of the robot

ROS Topics Published

ROS Topic

Interface

Description

/curobo/voxels

visualization_msgs/Marker

cuMotion’s world represented as voxels for visualization

ROS Services Requested

ROS Service

Interface

Description

esdf_service_name

nvblox_msgs/EsdfAndGradients

Service that takes an axis-aligned bounding box (AABB) for the planning region and returns a dense ESDF and gradient field for that region.

ROS Actions Advertised

ROS Action

Interface

Description

cumotion/move_group

moveit_msgs/MoveGroup

Creates a motion plan and forwards it to MoveIt

CumotionRobotSegmenter

ROS Parameters

ROS Parameter

Type

Default

Description

robot

string

ur5e.yml

Path to the XRDF file for the robot

urdf_path

string

rclpy.Parameter.Type.STRING

Path to the robot’s URDF

cuda_device

int

0

CUDA device index to use

distance_threshold

float

0.1

Maximum distance from a given collision sphere (in meters) at which to mask points

time_sync_slop

float

0.1

Maximum allowed delay (in seconds) for which depth image and joint state messages are considered synchronized

tf_lookup_duration

float

5.0

Maximum duration (in seconds) for which to block while waiting for a transform to become available

joint_states_topic

string

/joint_states

Topic to subscribe to for the robot’s joint states

debug_robot_topic

string

/cumotion/robot_segmenter/robot_spheres

Topic on which to publish the spheres representing the robot

depth_image_topics

string array

['/cumotion/depth_1/image_raw']

List of topics to subscribe to for input depth images

depth_camera_infos

string array

['/cumotion/depth_1/camera_info']

List of topics to subscribe to for camera info corresponding to the input depth image streams

robot_mask_publish_topics

string array

['/cumotion/depth_1/robot_mask']

List of topics on which to publish the robot segmentation masks for the corresponding depth image streams

world_depth_publish_topics

string array

['/cumotion/depth_1/world_depth']

List of topics on which to publish depth images with the robot segmented out

log_debug

bool

False

When true, increases logging verbosity to help with debugging

ROS Topics Subscribed

ROS Topic

Interface

Description

joint_states_topic

sensor_msgs/JointState

Joint states of the robot

depth_image_topics

sensor_msgs/Image

Input depth images, including the robot to be segmented out

depth_camera_infos

sensor_msgs/CameraInfo

Topics to subscribe to for the camera info corresponding to the input depth image streams

ROS Topics Published

ROS Topic

Interface

Description

debug_robot_topic

visualization_msgs/MarkerArray

Robot represented by spheres for debugging and visualization

robot_mask_publish_topics

sensor_msgs/Image

Robot segmentation masks for the corresponding depth image streams

world_depth_publish_topics

sensor_msgs/Image

Depth images with the robot segmented out
