isaac_ros_visual_slam

Source code on GitHub.

Quickstart

Set Up Development Environment

1. Set up your development environment by following the instructions in getting started.

2. Clone isaac_ros_common under ${ISAAC_ROS_WS}/src.

   cd ${ISAAC_ROS_WS}/src && \
      git clone -b release-3.2 https://github.com/NVIDIA-ISAAC-ROS/isaac_ros_common.git isaac_ros_common


3. (Optional) Install dependencies for any sensors you want to use by following the sensor-specific guides.

   Note

   We strongly recommend installing all sensor dependencies before starting any quickstarts. Some sensor dependencies require restarting the Isaac ROS Dev container during installation, which will interrupt the quickstart process.

Download Quickstart Assets

1. Download quickstart data from NGC:

   Make sure required libraries are installed.

   sudo apt-get install -y curl jq tar


   Then, run these commands to download the asset from NGC:

   NGC_ORG="nvidia"
   NGC_TEAM="isaac"
   PACKAGE_NAME="isaac_ros_visual_slam"
   NGC_RESOURCE="isaac_ros_visual_slam_assets"
   NGC_FILENAME="quickstart.tar.gz"
   MAJOR_VERSION=3
   MINOR_VERSION=2
   VERSION_REQ_URL="https://catalog.ngc.nvidia.com/api/resources/versions?orgName=$NGC_ORG&teamName=$NGC_TEAM&name=$NGC_RESOURCE&isPublic=true&pageNumber=0&pageSize=100&sortOrder=CREATED_DATE_DESC"
   AVAILABLE_VERSIONS=$(curl -s \
       -H "Accept: application/json" "$VERSION_REQ_URL")
   LATEST_VERSION_ID=$(echo $AVAILABLE_VERSIONS | jq -r "
       .recipeVersions[]
       | .versionId as \$v
       | \$v | select(test(\"^\\\\d+\\\\.\\\\d+\\\\.\\\\d+$\"))
       | split(\".\") | {major: .[0]|tonumber, minor: .[1]|tonumber, patch: .[2]|tonumber}
       | select(.major == $MAJOR_VERSION and .minor <= $MINOR_VERSION)
       | \$v
       " | sort -V | tail -n 1
   )
   if [ -z "$LATEST_VERSION_ID" ]; then
       echo "No corresponding version found for Isaac ROS $MAJOR_VERSION.$MINOR_VERSION"
       echo "Found versions:"
       echo $AVAILABLE_VERSIONS | jq -r '.recipeVersions[].versionId'
   else
       mkdir -p ${ISAAC_ROS_WS}/isaac_ros_assets && \
       FILE_REQ_URL="https://api.ngc.nvidia.com/v2/resources/$NGC_ORG/$NGC_TEAM/$NGC_RESOURCE/\
   versions/$LATEST_VERSION_ID/files/$NGC_FILENAME" && \
       curl -LO --request GET "${FILE_REQ_URL}" && \
       tar -xf ${NGC_FILENAME} -C ${ISAAC_ROS_WS}/isaac_ros_assets && \
       rm ${NGC_FILENAME}
   fi


Build isaac_ros_visual_slam

Binary PackageBuild from Source

1. Launch the Docker container using the run_dev.sh script:

   cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
   ./scripts/run_dev.sh


2. Install the prebuilt Debian package:

   sudo apt-get update


   sudo apt-get install -y ros-humble-isaac-ros-visual-slam


Run Launch File

RosbagRealSense CameraHawk CameraZED Camera

1. Continuing inside the Docker container, install the following dependencies:

   sudo apt-get update


   sudo apt-get install -y ros-humble-isaac-ros-examples


2. Run the following launch file to spin up a demo of this package using the quickstart rosbag:

   ros2 launch isaac_ros_examples isaac_ros_examples.launch.py launch_fragments:=visual_slam \
   interface_specs_file:=${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_visual_slam/quickstart_interface_specs.json \
   rectified_images:=false


3. Open a second terminal inside the Docker container:

   cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
   ./scripts/run_dev.sh


4. Run the rosbag file to simulate an image stream:

   ros2 bag play ${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_visual_slam/quickstart_bag --remap  \
   /front_stereo_camera/left/image_raw:=/left/image_rect \
   /front_stereo_camera/left/camera_info:=/left/camera_info_rect \
   /front_stereo_camera/right/image_raw:=/right/image_rect \
   /front_stereo_camera/right/camera_info:=/right/camera_info_rect \
   /back_stereo_camera/left/image_raw:=/rear_left/image_rect \
   /back_stereo_camera/left/camera_info:=/rear_left/camera_info_rect \
   /back_stereo_camera/right/image_raw:=/rear_right/image_rect \
   /back_stereo_camera/right/camera_info:=/rear_right/camera_info_rect


Visualize Results

1. Open a new terminal inside the Docker container:

   cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
      ./scripts/run_dev.sh


2. Visualize and validate the output of the package with rviz:

   rviz2 -d $(ros2 pkg prefix isaac_ros_visual_slam --share)/rviz/default.cfg.rviz

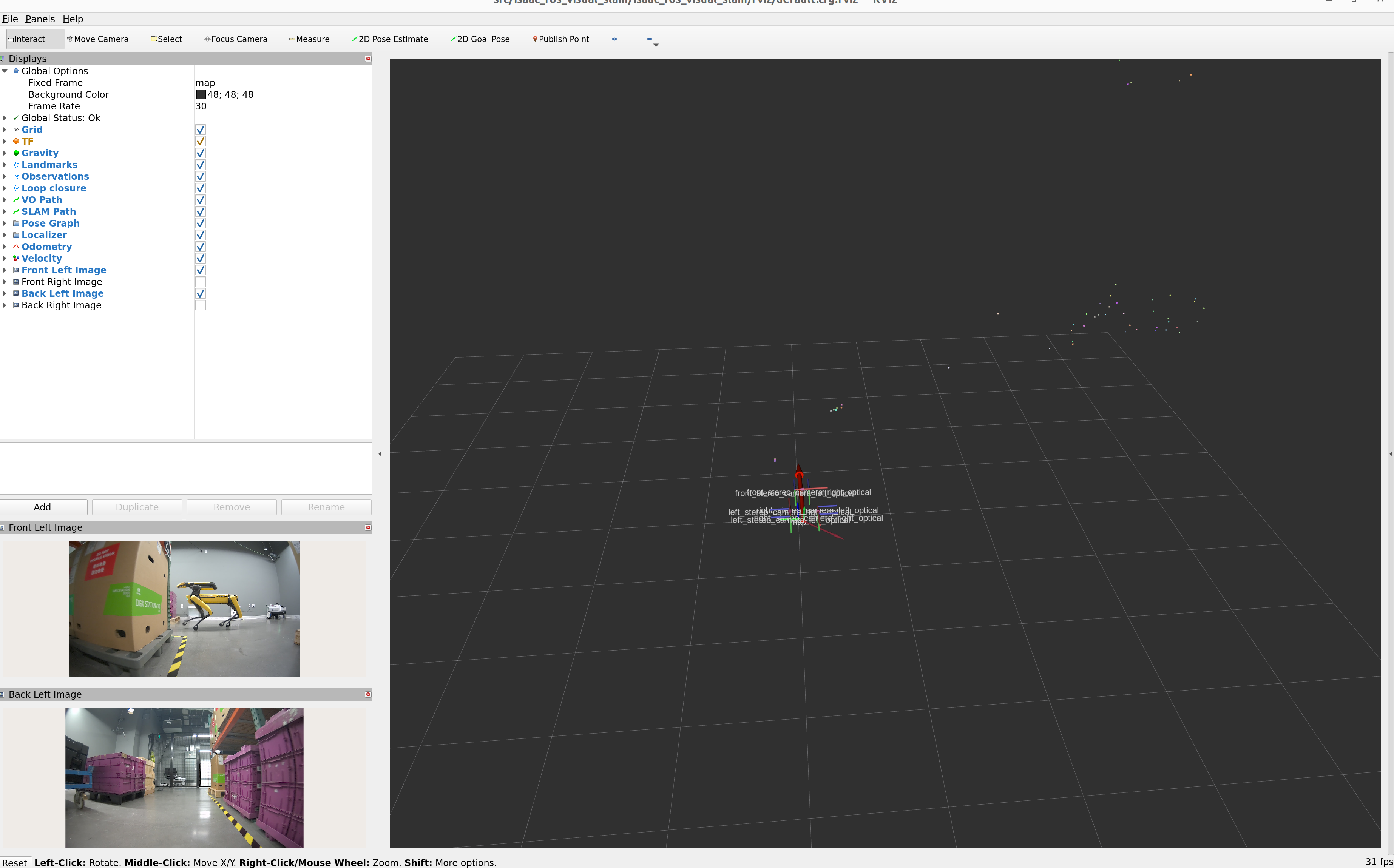

   RViz should start displaying the point clouds and poses like below:



Try More Examples

To continue your exploration, check out the following suggested examples:

• Validating cuVSLAM Setup
• Tutorial with Isaac Sim
• Tutorial with RealSense
• Tutorial with HAWK
• Tutorial with multiple HAWKs

Coordinate Frames

This section describes the coordinate frames that are involved in the VisualSlamNode. The frames discussed below are oriented as follows:

1. base_frame: The base frame of the robot or camera rig. It is assumed that all cameras are rigidly mounted to this frame, such that the transforms between the base_frame and the camera_optical_frames can assumed to be static. The estimated odometry and SLAM pose will represent the pose of this frame.

2. map_frame: The frame corresponding to the origin of the map that cuVSLAM creates or localizes in. The SLAM pose reported by cuVSLAM corresponds with the transform map_frame -> base_frame.

3. odom_frame: The frame corresponding to the origin of the odometry that cuVSLAM estimates. The odometry pose reported by cuVSLAM corresponds with the transform odom_frame -> base_frame.

4. camera_optical_frames: The frames corresponding to the optical center of every camera. The frame is expected to lie at the center of the camera lens and oriented with the z-axis pointing in the view direction and the y-axis pointing to the floor.

Troubleshooting

Isaac ROS Troubleshooting

For solutions to problems with Isaac ROS, please check here.

Troubleshooting Suggestions

1. If the target frames in RViz are being updated at a lower rate than the input image rate:

   1. Check if the input image frame rate is equal to the value set in the launch file by opening a new terminal and running the command

      ros2 topic hz --window 100 <image_topic_name>


2. If RViz is not showing the poses, check the Fixed Frame value.

3. If you are seeing Visual tracking is lost. messages frequently, it could be caused by the following issues:

   1. Fast motion causing the motion blur in the frames

   2. Low-lighting conditions.

   3. The wrong camera_info is being published.

4. For better performance:

   1. Increase the capture framerate from the camera to yield a better tracking result.

   2. If input images are noisy, you can use the denoise_input_images flag in the node.

5. For RealSense cameras check that:

   1. You are using the firmware and realsense_ros versions recommended in RealSense setup tutorial.

   2. You are using the parameters set in the RealSense tutorial launch file

   3. If the pose estimate frames in RViz is drifting from actual real-world poses and you see white dots on nearby objects(refer to the screenshot below), this means that the emitter of the RealSense camera is on and it needs to be turned off.

   4. Left and right images being published are not compressed or encoded. Isaac ROS Visual Slam expects raw images.

6. For global localization:

   Isaac ROS Visual SLAM does not yet support global localization and needs an external system to provide a pose hint in order to localize in an existing map.

   We recommend to use Isaac ROS Visual Global Localization for global localization. This is also integrated in the Isaac Perceptor app.

API

Usage

ros2 launch isaac_ros_visual_slam isaac_ros_visual_slam.launch.py

ROS Parameters

ROS Parameter	Type	Default	Description
Functional Parameters
num_cameras	int	2	Number of cameras used. Set to 2 for a single stereo camera. Maximum value is 32.
min_num_images	int	num_cameras	Minimum number of images required to track the pose. If less than min_num_images with a synchronized timestamp are received then the synchronizer will drop all messages.
sync_matching_threshold_ms	double	5.0	Maximum duration between image timestamps to still consider them synced.
enable_image_denoising	bool	false	If enabled, input images are denoised. It can be enabled when images are noisy because of low-light conditions.
rectified_images	bool	true	Flag to mark if the incoming images are rectified or raw.
enable_ground_constraint_in_odometry	bool	false	If enabled, odometry poses will be modified such that the camera moves on a horizontal plane.
enable_ground_constraint_in_slam	bool	false	If enabled, SLAM poses will be modified such that the camera moves on a horizontal plane.
enable_localization_n_mapping	bool	true	If enabled, SLAM mode is on. If disabled, only odometry is on.
enable_imu_fusion	bool	false	If enabled, IMU data is used.
gyro_noise_density	double	0.000244	White noise parameter for gyroscope based on IMU Noise Model.
gyro_random_walk	double	0.000019393	Random walk parameter for gyroscope based on IMU Noise Model.
accel_noise_density	double	0.001862	White noise parameter for accelerometer based on IMU Noise Model.
accel_random_walk	double	0.003	Random walk parameter for accelerometer based on IMU Noise Model.
calibration_frequency	double	200.0	IMU frequency used for generating noise model parameters.
image_jitter_threshold_ms	double	34.0	Acceptable time delta between consecutive synced image messages. If the messages exceed the threshold, it might be an indication of message drop from the source.
imu_jitter_threshold_ms	double	10.0	Acceptable time delta between consecutive IMU messages. If the messages exceed the threshold, it might be an indication of message drop from the source.
img_mask_top	int	0	The number of pixels of the upper border of the image will be masked at the stage of selecting features for visual tracking.
img_mask_bottom	int	0	The number of pixels of the lower border of the image will be masked at the stage of selecting features for tracking.
img_mask_left	int	0	The number of pixels of the left border of the image from the left camera of the stereo pair (the right border for the right camera of a stereo pair) will be masked at the stage of selecting features for tracking.
img_mask_right	int	0	The number of pixels of the right border of the image from the left camera of the stereo pair (the left border for the right camera of a stereo pair) will be masked at the stage of selecting features for tracking.
save_map_folder_path	std::string	""	If set the map will be stored in the set path after shutting down the node. Requires enable_localization_n_mapping mode to be enabled.
load_map_folder_path	std::string	""	If set the map will be loaded from the set path on starting up the node. Requires enable_localization_n_mapping mode to be enabled.
localize_on_startup	bool	false	If set will try to localize in the load_map_folder_path using the identity pose as the pose hint.
localizer_horizontal_radius	float	1.5	Radius of the area on the horizontal plane used for localization in meters.
localizer_vertical_radius	float	0.5	Radius along the vertical axis used for localization in meters.
localizer_horizontal_step	float	0.5	Step size along each axis on the horizontal plane for localization in meters.
localizer_vertical_step	float	0.25	Step size along vertical axis for localization in meters.
localizer_angular_step	float	0.1745	Step size around vertical axis for localization in radians. Must be less then 2 Pi.
slam_max_map_size	int	300	Maximum number of poses that is stored in the SLAM map. Default is 300. Adding more poses will invoke reduction of the map until it`s size matches this constant.
enable_request_hint	bool	true	If set will request a second hint when hinted localization fails with the previous hint.
Frame Parameters
map_frame	std::string	map	The frame name associated with the map origin.
odom_frame	std::string	odom	The frame name associated with the odometry origin.
base_frame	std::string	base_link	The frame name associated with the base of the robot or camera rig.
camera_optical_frames	std::vector<std::string>	[]	The frame names associated with the cameras’ optical frames. Using ROS optical frame conventions, i.e. z-axis front, y-axis down. If not specified will use the frames from the camera info messages.
imu_frame	std::string	imu	The frame name associated with the IMU.
Message Parameters
image_buffer_size	int	100	Buffer size used by the image synchronizer.
imu_buffer_size	int	50	Buffer size used by the IMU sequencer.
image_qos	std::string	DEFAULT	QoS profile for the image subscribers.
imu_qos	std::string	DEFAULT	QoS profile for the IMU subscriber.
Output Parameters
override_publishing_stamp	bool	false	Override timestamp received from the left image with the timestamp from rclcpp::Clock.
publish_map_to_odom_tf	bool	true	Enable tf broadcaster for map_frame -> odom_frame transform.
publish_odom_to_rig_tf	bool	true	Enable tf broadcaster for odom_frame -> base_frame transform.
invert_map_to_odom_tf	bool	false	Invert the map_frame -> odom_frame transform before broadcasting to the tf tree.
invert_odom_to_rig_tf	bool	false	Invert the odom_frame -> base_frame transform before broadcasting to the tf tree.
Debug/Visualization Parameters
enable_slam_visualization	bool	false	Main flag to enable or disable visualization.
enable_observations_view	bool	false	If enabled, 2D feature pointcloud will be available for visualization.
enable_landmarks_view	bool	false	If enabled, landmark pointcloud will be available for visualization.
path_max_size	int	1024	The maximum size of the buffer for pose trail visualization.
verbosity	int	0	Verbosity for cuVSLAM, 0 is silent.
enable_debug_mode	bool	false	If enabled, a debug dump (images, IMU messages, timestamps, and camera info) is saved to the disk at the path indicated by debug_dump_path.
debug_dump_path	std::string	/tmp/cuvslam	The path to the directory to store the debug dump data.

ROS Topics Subscribed

ROS Topic	Interface	Description
visual_slam/image_{i}	sensor_msgs/Image	Image from the i-th camera in grayscale (i is in range [0, num_cameras-1]).
visual_slam/camera_info_{i}	sensor_msgs/CameraInfo	Camera info from the i-th camera (i is in range [0, num_cameras-1]).
visual_slam/imu	sensor_msgs/Imu	Sensor data from the IMU (is only present if enable_imu_fusion is true).
visual_slam/initial_pose	geometry_msgs/PoseWithCovarianceStamped	Pose used as pose hint for localizing in an existing map. Every received message will trigger a localization.
visual_slam/trigger_hint	geometry_msgs/PoseWithCovarianceStamped	A message will be sent on this topic when the node requires a new pose hint for localization.

ROS Topics Published

ROS Topic	Interface	Description
visual_slam/tracking/odometry	nav_msgs/Odometry	Current odometry of the base_frame.
visual_slam/tracking/vo_pose_covariance	geometry_msgs/PoseWithCovarianceStamped	Current pose with covariance of the base_frame.
visual_slam/tracking/vo_pose	geometry_msgs/PoseStamped	Current pose of the base_frame.
visual_slam/tracking/slam_path	nav_msgs/Path	Trail of poses generated by SLAM.
visual_slam/tracking/vo_path	nav_msgs/Path	Trail of poses generated by pure Visual Odometry.
visual_slam/status	isaac_ros_visual_slam_interfaces/VisualSlamStatus	Status message for diagnostics.
/diagnostics	diagnostic_msgs/DiagnosticArray <https://github.com/ros2/common_interfaces/blob/humble/diagnostic_msgs/msg/DiagnosticArray.msg> __	Diagnostic message. Similar to status topic but in a different format.
Visualization Topics
visual_slam/vis/observations_cloud	sensor_msgs/PointCloud2	Visualization containing all current observations.
visual_slam/vis/gravity	visualization_msgs/Marker	Visualization containing the currently estimated gravity vector.
visual_slam/vis/velocity	visualization_msgs/Marker	Visualization containing the currently estimated velocity.
visual_slam/vis/slam_odometry	nav_msgs/Odometry	Visualization containing the currently estimated odometry from SLAM poses.
visual_slam/vis/landmarks_cloud	sensor_msgs/PointCloud2	Visualization containing the 3D SLAM landmarks from the map.
visual_slam/vis/loop_closure_cloud	sensor_msgs/PointCloud2	Visualization containing the 3D SLAM landmarks currently used for loop closure.
visual_slam/vis/pose_graph_nodes	geometry_msgs/PoseArray	Visualization containing the pose graph nodes.
visual_slam/vis/pose_graph_edges	visualization_msgs/Marker	Visualization containing the pose graph edges.
visual_slam/vis/pose_graph_edges2	visualization_msgs/Marker	Visualization containing the pose graph edges2.
visual_slam/vis/localizer	visualization_msgs/MarkerArray	Visualization containing the poses used for localization.
visual_slam/vis/localizer_map_cloud	sensor_msgs/PointCloud2	Visualization containing the map used for localization.
visual_slam/vis/localizer_observations_cloud	sensor_msgs/PointCloud2	Visualization containing observations used for the localization.
visual_slam/vis/localizer_loop_closure_cloud	sensor_msgs/PointCloud2	Visualization containing landmarks used for loop closure in the localization.

ROS Services Advertised

ROS Service	Interface	Description
visual_slam/reset	isaac_ros_visual_slam_interfaces/Reset	A service to reset the node.
visual_slam/get_all_poses	isaac_ros_visual_slam_interfaces/GetAllPoses	A service to get the series of poses for the path traversed.
visual_slam/set_slam_pose	isaac_ros_visual_slam_interfaces/SetSlamPose	A service to set the estimated SLAM pose of the base_frame.
visual_slam/save_map	isaac_ros_visual_slam_interfaces/FilePath	A service to store the current map to disk.
visual_slam/load_map	isaac_ros_visual_slam_interfaces/FilePath	A service to load a map from disk.
visual_slam/localize_in_map	isaac_ros_visual_slam_interfaces/LocalizeInMap	A service to localize in an existing map with a pose hint.

Note

The last 4 services only work in SLAM mode i.e. set enable_localization_n_mapping = true.
