isaac_ros_grounding_dino

Source code available on GitHub.

Quickstart

Set Up Development Environment

1. Set up your development environment by following the instructions in getting started.

2. (Optional) Install dependencies for any sensors you want to use by following the sensor-specific guides.

   Note

   We strongly recommend installing all sensor dependencies before starting any quickstarts. Some sensor dependencies require restarting the development environment during installation, which will interrupt the quickstart process.

Download Quickstart Assets

1. Download quickstart data from NGC:

   Make sure required libraries are installed.

   sudo apt-get install -y curl jq tar


   Then, run these commands to download the asset from NGC:

   NGC_ORG="nvidia"
   NGC_TEAM="isaac"
   PACKAGE_NAME="isaac_ros_grounding_dino"
   NGC_RESOURCE="isaac_ros_grounding_dino_assets"
   NGC_FILENAME="quickstart.tar.gz"
   MAJOR_VERSION=4
   MINOR_VERSION=0
   VERSION_REQ_URL="https://catalog.ngc.nvidia.com/api/resources/versions?orgName=$NGC_ORG&teamName=$NGC_TEAM&name=$NGC_RESOURCE&isPublic=true&pageNumber=0&pageSize=100&sortOrder=CREATED_DATE_DESC"
   AVAILABLE_VERSIONS=$(curl -s \
       -H "Accept: application/json" "$VERSION_REQ_URL")
   LATEST_VERSION_ID=$(echo $AVAILABLE_VERSIONS | jq -r "
       .recipeVersions[]
       | .versionId as \$v
       | \$v | select(test(\"^\\\\d+\\\\.\\\\d+\\\\.\\\\d+$\"))
       | split(\".\") | {major: .[0]|tonumber, minor: .[1]|tonumber, patch: .[2]|tonumber}
       | select(.major == $MAJOR_VERSION and .minor <= $MINOR_VERSION)
       | \$v
       " | sort -V | tail -n 1
   )
   if [ -z "$LATEST_VERSION_ID" ]; then
       echo "No corresponding version found for Isaac ROS $MAJOR_VERSION.$MINOR_VERSION"
       echo "Found versions:"
       echo $AVAILABLE_VERSIONS | jq -r '.recipeVersions[].versionId'
   else
       mkdir -p ${ISAAC_ROS_WS}/isaac_ros_assets && \
       FILE_REQ_URL="https://api.ngc.nvidia.com/v2/resources/$NGC_ORG/$NGC_TEAM/$NGC_RESOURCE/\
   versions/$LATEST_VERSION_ID/files/$NGC_FILENAME" && \
       curl -LO --request GET "${FILE_REQ_URL}" && \
       tar -xf ${NGC_FILENAME} -C ${ISAAC_ROS_WS}/isaac_ros_assets && \
       rm ${NGC_FILENAME}
   fi


Build isaac_ros_grounding_dino

Binary PackageBuild from Source

1. Activate the Isaac ROS environment:

   isaac-ros activate


2. Install the prebuilt Debian package:

   sudo apt-get update


   sudo apt-get install -y ros-jazzy-isaac-ros-grounding-dino && \
      sudo apt-get install -y ros-jazzy-isaac-ros-grounding-dino-models-install


3. Download and set up (convert ONNX to TensorRT engine plan) the pre-trained Grounding DINO model:

   sudo apt-get update


   ros2 run isaac_ros_grounding_dino_models_install install_grounding_dino_models.sh --eula


   Note

   The time taken to convert the ONNX model to a TensorRT engine plan varies across different platforms. On Jetson AGX Thor, for example, the engine conversion process can take up to 10-15 minutes to complete.

Run Launch File

RosbagRealSense CameraZED Camera

1. Continuing inside the Isaac ROS environment, install the following dependencies:

   sudo apt-get update


   sudo apt-get install -y ros-jazzy-isaac-ros-examples


2. Run the following launch file to spin up a demo of this package using the quickstart rosbag:

   ros2 launch isaac_ros_examples isaac_ros_examples.launch.py launch_fragments:=grounding_dino interface_specs_file:=${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_grounding_dino/quickstart_interface_specs.json model_file_path:=${ISAAC_ROS_WS}/isaac_ros_assets/models/grounding_dino/grounding_dino_model.onnx engine_file_path:=${ISAAC_ROS_WS}/isaac_ros_assets/models/grounding_dino/grounding_dino_model.plan


3. Open a second terminal inside the Isaac ROS environment:

   isaac-ros activate


4. Run the rosbag file to simulate an image stream:

   ros2 bag play -l ${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_grounding_dino/quickstart.bag


Visualize Results

1. Open a new terminal inside the Isaac ROS environment:

   isaac-ros activate


2. Run the Grounding DINO visualization script:

   ros2 run isaac_ros_grounding_dino isaac_ros_grounding_dino_visualizer.py


3. Open another terminal inside the Isaac ROS environment:

   isaac-ros activate


4. Visualize and validate the output of the package with rqt_image_view:

   ros2 run rqt_image_view rqt_image_view /grounding_dino_processed_image

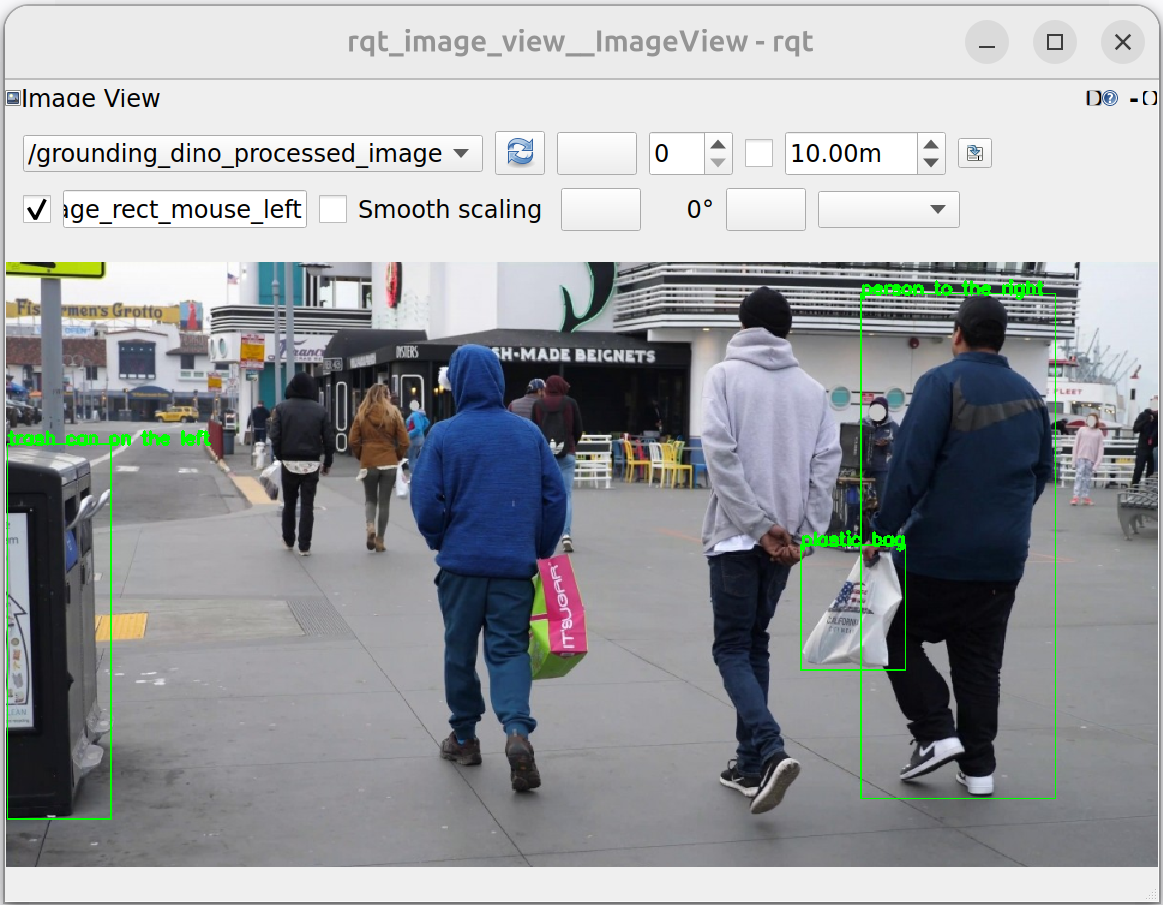

   Your output should look like this:



5. Open another terminal inside the Isaac ROS environment:

   isaac-ros activate


6. Dynamically change the prompt using the set_prompt service:

   ros2 service call /set_prompt isaac_ros_grounding_dino_interfaces/srv/SetPrompt "{prompt: 'shopping bag.person.'}"


Note

Grounding DINO is designed to perform object detection on previously unseen objects without model retraining. As a result, inference requires significant GPU compute. Refer to performance of the model for your target platform to determine which model to use.

More powerful discrete GPUs can outperform all other platforms for this task and should be preferred if higher performance is required. Interleaving object detection with other tasks rather than running continuously can be a more effective solution as well. Finally, if runtime performance is critical and offline training resources are available, developers can train RT-DETR for their own target objects using synthetic data generation and/or real-world data for faster object detection.

Troubleshooting

Isaac ROS Troubleshooting

For solutions to problems with Isaac ROS, see troubleshooting.

Deep Learning Troubleshooting

For solutions to problems with using DNN models, see troubleshooting deeplearning.

API

Usage

ros2 launch isaac_ros_grounding_dino isaac_ros_grounding_dino.launch.py model_file_path:=<path to .onnx> engine_file_path:=<path to .plan> input_image_width:=<input image width> input_image_height:=<input image height> network_image_width:=<network image width> network_image_height:=<network image height> input_tensor_names:=<input tensor names> input_binding_names:=<input binding names> output_tensor_names:=<output tensor names> output_binding_names:=<output binding names> tensorrt_verbose:=<TensorRT verbosity> force_engine_update:=<force TensorRT update> confidence_threshold:=<confidence threshold>

GroundingDinoPreprocessorNode

ROS Parameters

ROS Parameter	Type	Default	Description
default_prompt	string	''	The default text prompt to use for object detection.
service_call_timeout	int	5	The timeout (in seconds) for the GetTextTokens service call.
service_discovery_timeout	int	5	The timeout (in seconds) for the GetTextTokens service discovery.

ROS Topics Subscribed

ROS Topic	Interface	Description
image_tensor	isaac_ros_tensor_list_interfaces/TensorList	The tensor that contains the encoded image data.

ROS Topics Published

ROS Topic	Interface	Description
tensor_pub	isaac_ros_tensor_list_interfaces/TensorList	Tensor list containing encoded image and text tensors.

ROS Services Advertised

ROS Service	Interface	Description
set_prompt	isaac_ros_grounding_dino_interfaces/SetPrompt	Service to set a new text prompt for object detection.

ROS Services Requested

ROS Service	Interface	Description
get_text_tokens	isaac_ros_grounding_dino_interfaces/GetTextTokens	Service to tokenize text prompts and generate positive maps.
sync_data_with_decoder	isaac_ros_grounding_dino_interfaces/SyncDataWithDecoder	Service to synchronize class IDs and positive maps between the pre-processor and decoder nodes.

GroundingDinoTextTokenizer

ROS Services Advertised

ROS Service	Interface	Description
get_text_tokens	isaac_ros_grounding_dino_interfaces/GetTextTokens	Service to tokenize text prompts into BERT tokens and generate positive maps for label-to-token mapping.

GroundingDinoDecoderNode

ROS Parameters

ROS Parameter	Type	Default	Description
boxes_tensor_name	string	boxes	The name of the boxes tensor binding in the input tensor list.
scores_tensor_name	string	scores	The name of the scores tensor binding in the input tensor list.
confidence_threshold	double	0.5	The minimum score required for a particular bounding box to be published.
image_width	int	640	The width of the resized image, for scaling the final bounding box to match the original dimensions.
image_height	int	480	The height of the resized image, for scaling the final bounding box to match the original dimensions.

ROS Topics Subscribed

ROS Topic	Interface	Description
tensor_sub	isaac_ros_tensor_list_interfaces/TensorList	The tensor that represents the inferred aligned bounding boxes and scores.

ROS Topics Published

ROS Topic	Interface	Description
detections_output	vision_msgs/Detection2DArray	Aligned image bounding boxes with detection class.

ROS Services Advertised

ROS Service	Interface	Description
sync_data_with_decoder	isaac_ros_grounding_dino_interfaces/SyncDataWithDecoder	Service to receive and synchronize class IDs and positive maps from the pre-processor node.
