`isaac_ros_segment_anything`

Source code on GitHub.

Quickstart

Set Up Development Environment

Set up your development environment by following the instructions in getting started.

Clone isaac_ros_common under ${ISAAC_ROS_WS}/src.

cd ${ISAAC_ROS_WS}/src && \
   git clone https://github.com/NVIDIA-ISAAC-ROS/isaac_ros_common.git

(Optional) Install dependencies for any sensors you want to use by following the sensor-specific guides.

Warning

We strongly recommend installing all sensor dependencies before starting any quickstarts. Some sensor dependencies require restarting the Isaac ROS Dev container during installation, which will interrupt the quickstart process.

Download Quickstart Assets

Download quickstart data from NGC:

Make sure required libraries are installed.

sudo apt-get install -y curl tar

Then, run these commands to download the asset from NGC.

NGC_ORG="nvidia"
NGC_TEAM="isaac"
NGC_RESOURCE="isaac_ros_assets"
NGC_VERSION="isaac_ros_segment_anything"
NGC_FILENAME="quickstart.tar.gz"

REQ_URL="https://api.ngc.nvidia.com/v2/resources/$NGC_ORG/$NGC_TEAM/$NGC_RESOURCE/versions/$NGC_VERSION/files/$NGC_FILENAME"

mkdir -p ${ISAAC_ROS_WS}/isaac_ros_assets/${NGC_VERSION} && \
    curl -LO --request GET "${REQ_URL}" && \
    tar -xf ${NGC_FILENAME} -C ${ISAAC_ROS_WS}/isaac_ros_assets/${NGC_VERSION} && \
    rm ${NGC_FILENAME}

Build `isaac_ros_segment_anything`

Launch the Docker container using the run_dev.sh script:

cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
./scripts/run_dev.sh

Install the prebuilt Debian package:

sudo apt-get install -y ros-humble-isaac-ros-segment-anything

Clone this repository under ${ISAAC_ROS_WS}/src:

cd ${ISAAC_ROS_WS}/src && \
   git clone https://github.com/NVIDIA-ISAAC-ROS/isaac_ros_image_segmentation.git

Launch the Docker container using the run_dev.sh script:

cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
./scripts/run_dev.sh

Use rosdep to install the package’s dependencies:

rosdep install --from-paths ${ISAAC_ROS_WS}/src/isaac_ros_image_segmentation --ignore-src -y

Build the package from source:

cd ${ISAAC_ROS_WS} && \
   colcon build --symlink-install --packages-up-to isaac_ros_segment_anything

Source the ROS workspace:

Note

Make sure to repeat this step in every terminal created inside the Docker container.

Since this package was built from source, the enclosing workspace must be sourced for ROS to be able to find the package’s contents.
```
source install/setup.bash
```

Prepare Segment Anything ONNX Model

There are two Segment Anything models available to select from in the steps below: SAM and Mobile SAM. SAM provides the full accuracy of Segment Anything but can consume over 8GB of GPU memory and take more computation effort for inference. Mobile SAM, has been tuned to operate with a much smaller memory footprint and less computation overhead, but with some level of degradation in quality. Choose the model which will be the most effective for your use case.

Make a directory to place models (inside the Docker container):

mkdir -p ${ISAAC_ROS_WS}/isaac_ros_assets/models/segment_anything/1/

Create the ONNX file for SAM or for Mobile SAM.

Note

SAM is only supported with Triton using the ONNX backend. The following step is to be performed only on x86_64. You must copy the generated ONNX file to a Jetson, in case you want to run the package on the device.

Note

It is recommended to run SAM with at least 12GB+ GPU memory. Mobile SAM smaller version of SAM which can be used if GPU VRAM is not sufficient to run SAM.
Steps to use SAM

To create ONNX file for SAM. Download the PyTorch weights from Segment Anything official repo. Then, copy the downloaded model weights into the container. The model is expected to be downloaded to ~/Downloads outside the Docker container.

Move this file to ${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_segment_anything/ using a console outside of the container and then continue inside the container.

For example, if the model vit_b.pth was downloaded to ~/Downloads:

On x86_64:
# Outside container
mv ~/Downloads/</path/to/vit_b> ${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_segment_anything/vit_b.pth
# Inside container
cd ${ISAAC_ROS_WS}
pip install git+https://github.com/facebookresearch/segment-anything.git
# Inside container
ros2 run isaac_ros_segment_anything torch_to_onnx.py \
--checkpoint ${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_segment_anything/vit_b.pth \
--output ${ISAAC_ROS_WS}/isaac_ros_assets/models/segment_anything/1/model.onnx --model-type vit_b --sam-type SAM
Steps to use MobileSAM To create ONNX file for Mobile SAM. Download the PyTorch weights from Mobile SAM official repo. Then, copy the downloaded model weights into the container. The model is expected to be downloaded to ~/Downloads outside the Docker container.

This example uses mobile_sam.pt, which must be copied into ${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_segment_anything inside the Docker container:

On x86_64:
# Outside container
mv ~/Downloads/mobile_sam.pt ${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_segment_anything/mobile_sam.pt
# Inside container
cd ${ISAAC_ROS_WS}
pip install timm && \
pip install git+https://github.com/ChaoningZhang/MobileSAM.git
# Inside container
ros2 run isaac_ros_segment_anything torch_to_onnx.py \
--checkpoint ${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_segment_anything/mobile_sam.pt \
--output ${ISAAC_ROS_WS}/isaac_ros_assets/models/segment_anything/1/model.onnx --model-type vit_t --sam-type MobileSAM

Copy the config file:

cp ${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_segment_anything/sam_config_onnx.pbtxt ${ISAAC_ROS_WS}/isaac_ros_assets/models/segment_anything/config.pbtxt

Run Launch File

Segment Anything requires a prompt to indicate what in the image we want to segment. In this example, we will use YOLOv8 object detection to determine the image space bounding box of an object of interest to use as the prompt for Segment Anything to create an image segmentation mask for.

Continuing inside the Docker container, install the following dependencies:
```
sudo apt-get install -y ros-humble-isaac-ros-examples
```

Run the following launch file to spin up a demo of this package:

cd ${ISAAC_ROS_WS} && \
   ros2 launch isaac_ros_examples isaac_ros_examples.launch.py launch_fragments:=segment_anything interface_specs_file:=${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_segment_anything/quickstart_interface_specs.json sam_model_repository_paths:=[${ISAAC_ROS_WS}/isaac_ros_assets/models]

Then open another terminal, and enter the Docker container again:

cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
   ./scripts/run_dev.sh

Then, play the ROS bag:

ros2 bag play -l ${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_segment_anything/segment_anything_sample_data/

Ensure that you have already set up your RealSense camera using the RealSense setup tutorial. If you have not, please set up the sensor and then restart this quickstart from the beginning.
Complete the Isaac ROS YOLOv8 tutorial up until the build step.

Continuing inside the Docker container, install the following dependencies:

sudo apt-get install -y ros-humble-isaac-ros-examples ros-humble-isaac-ros-realsense

Run the following launch file to spin up a demo of this package using a RealSense camera:

ros2 launch isaac_ros_examples isaac_ros_examples.launch.py launch_fragments:=realsense_mono_rect,segment_anything,yolov8 interface_specs_file:=${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_segment_anything/yolo_interface_specs.json model_file_path:=${ISAAC_ROS_WS}/isaac_ros_assets/models/yolov8/yolov8s.onnx engine_file_path:=${ISAAC_ROS_WS}/isaac_ros_assets/models/yolov8/yolov8s.plan sam_model_repository_paths:=[${ISAAC_ROS_WS}/isaac_ros_assets/models]

Ensure that you have already set up your Hawk camera using the Hawk setup tutorial. If you have not, please set up the sensor and then restart this quickstart from the beginning.
Complete the Isaac ROS YOLOv8 tutorial up until the build step.

Continuing inside the Docker container, install the following dependencies:

sudo apt-get install -y ros-humble-isaac-ros-examples ros-humble-isaac-ros-argus-camera

Run the following launch file to spin up a demo of this package using a Hawk camera:

ros2 launch isaac_ros_examples isaac_ros_examples.launch.py launch_fragments:=argus_mono,rectify_mono,segment_anything,yolov8 interface_specs_file:=${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_segment_anything/yolo_interface_specs.json model_file_path:=${ISAAC_ROS_WS}/isaac_ros_assets/models/yolov8/yolov8s.onnx engine_file_path:=${ISAAC_ROS_WS}/isaac_ros_assets/models/yolov8/yolov8s.plan sam_model_repository_paths:=[${ISAAC_ROS_WS}/isaac_ros_assets/models]

Visualize Results

Open a new terminal inside the Docker container:

cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
   ./scripts/run_dev.sh

Run the Python script to generate the colored segmentation mask from raw mask.
```
ros2 run isaac_ros_segment_anything visualize_mask.py
```
Visualize and validate the output of the package by launching rqt_image_view. In another terminal enter the Docker container:
```
cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
   ./scripts/run_dev.sh
```
Then launch rqt_image_view:
```
ros2 run rqt_image_view rqt_image_view
```

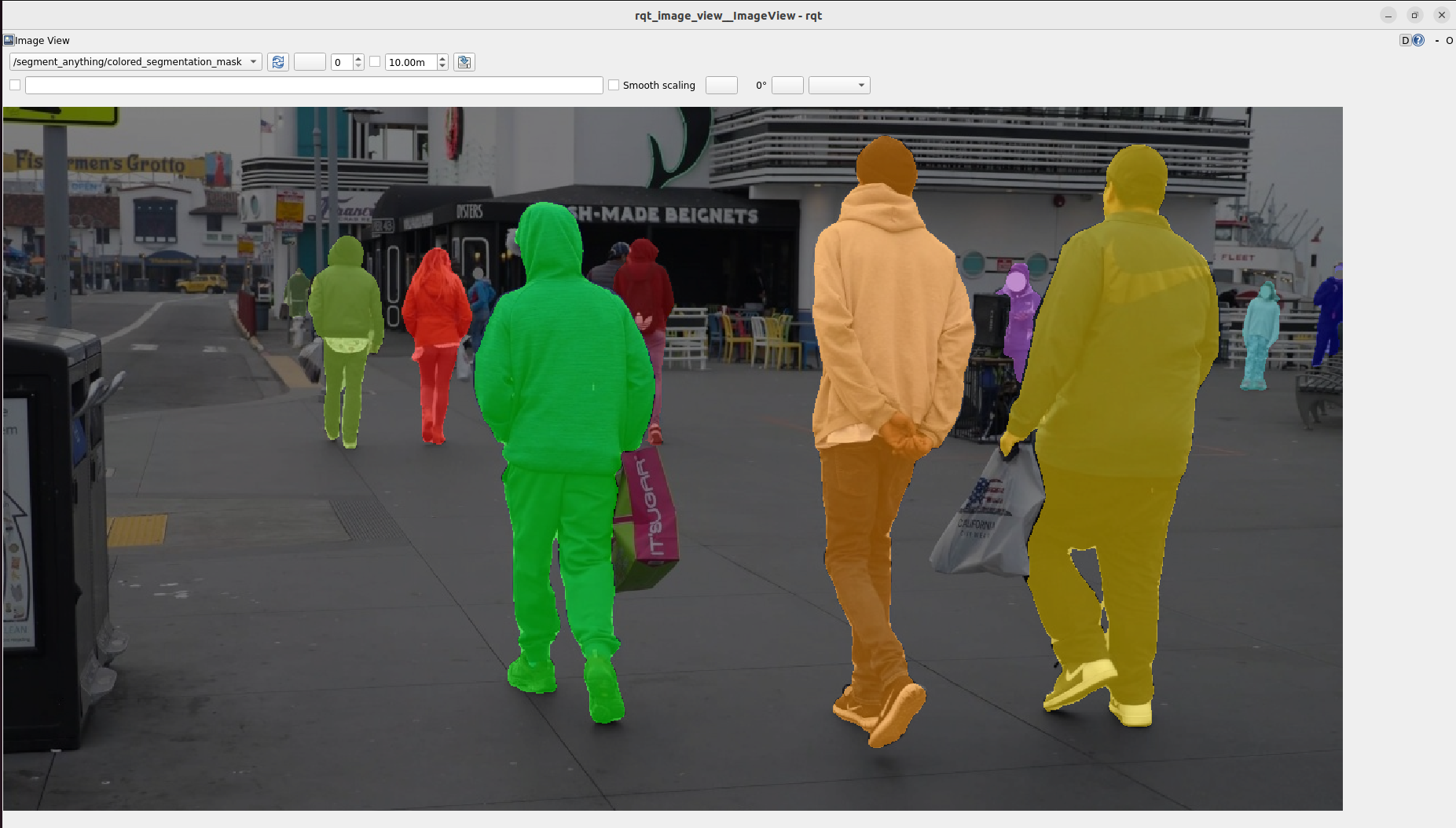

Inside the rqt_image_view GUI, change the topic to /segment_anything/colored_segmentation_mask to view a colorized segmentation mask.

Note

The raw segmentation mask is also published to /segment_anything/raw_segmentation_mask. However, the raw pixels correspond to the class labels and so the output is unsuitable for human visual inspection.

Note

Segment Anything is designed to perform segmentation on unseen objects, and requires significant GPU compute to perform this task. Refer to performance of the model, for your target platform. High performance discrete GPU’s can outperform Jetson platforms for this task, and should be used if higher performance is needed.

Note

Segment Anything is designed to perform image segmentation on previously unseen objects without model retraining. As a result, inference requires significant GPU compute for this task. Refer to performance of the model for your target platform to determine which model variants to use.

More powerful discrete GPUs can outperform all other platforms for this task and should be preferred if higher performance is required. Interleaving image segmentation with other tasks rather than running continuously can be a more effective solution as well. Finally, if runtime performance is critical and offline training resources are available, developers can train Unet for their own target objects using synthetic data generation and/or real-world data for faster image segmentation.

Try More Examples

To continue your exploration, check out the following suggested examples:

Tutorial with Isaac Sim

Troubleshooting

Isaac ROS Troubleshooting

For solutions to problems with Isaac ROS, see here.

Deep Learning Troubleshooting

For solutions to problems with using DNN models, see here.

API

Usage

A single launch file is provided for this package. The launch file launches isaac_ros_triton with ONNX backend. Only the ONNX backend with Triton is supported for this model.

Warning

For your specific application, these launch files may need to be modified. Please consult the available components to see the configurable parameters.

Launch File	Components Used
`isaac_ros_segment_anything_triton.launch.py`	ResizeNode, PadNode, ImageFormatConverterNode, ImageToTensorNode, ImageTensorNormalizeNode, InterleavedToPlanarNode, ReshapeNode, TritonNode, SegmentAnythingDecoderNode, SegmentAnythingDataEncoderNode, DummyMaskPublisher

SegmentAnythingDecoderNode

ROS Parameters

ROS Parameter	Type	Default	Description
`mask_width`	`int16_t`	`960`	The width of the segmentation mask.
`mask_height`	`int16_t`	`544`	The height of the segmentation mask.
`max_batch_size`	`int16_t`	`20`	Maximum number of prompt inputs for each frame.

Warning

Note: If a frame does not have any input prompt then no mask is generated for that particular frame.
Note: If for a frame input prompts are larger than the max_batch_size then first max_batch_size input prompts will be considered.

ROS Topics Subscribed

ROS Topic	Interface	Description
`tensor_sub`	isaac_ros_tensor_list_interfaces/TensorList	List of Output Tensors from the SAM model.

Warning

All input images are required to have height and width that are both an even number of pixels.

ROS Topics Published

ROS Topic	Interface	Description
`/segment_anything/raw_segmentation_mask`	isaac_ros_tensor_list_interfaces/TensorList	The raw segmentation mask, A Tensor with shape [batch_size, 1, orig_img_height, orig_img_width]. Where batch_size is number of prompt inputs for that frame.

SegmentAnythingDataEncoderNode

ROS Parameters

ROS Parameter	Type	Default	Description
`prompt_input_type`	`string`	`bbox`	Type of Prompt Input. Supported Types: `bbox` and `point`
`has_input_mask`	`bool`	`false`	Whether there is any input mask for SAM or not.
`max_batch_size`	`int16_t`	`20`	Maximum number of prompt inputs for each frame.
`orig_img_dims`	`double list`	`[632,1200]`	Dimensions of the Original Image in `[H,W]` format. Please note, expectation is each bbox/point is in the coordinate system of given dimension image.

ROS Topics Subscribed

ROS Topic	Interface	Description
`/prompts`	vision_msgs/Detection2DArray	Input Detection2DArray, If prompt type is `point` then center of bbox is considered as point of interest.
`/tensor_pub`	isaac_ros_tensor_list_interfaces/TensorList	The preprocessed & encoded image tensor.
`/mask`	isaac_ros_tensor_list_interfaces/TensorList	Input mask for SAM.

ROS Topics Published

ROS Topic	Interface	Description
`/tensor`	isaac_ros_tensor_list_interfaces/TensorList	Tensor List which has all the required tensors for SAM inference.

DummyMaskPublisher

This node can be used to publish dummy mask to SAM in case there is no mask input to use.

ROS Parameters

ROS Parameter	Type	Default	Description
`tensor_name`	`string`	`input_mask`	Name of the mask tensor.

ROS Topics Subscribed

ROS Topic	Interface	Description
`/tensor_pub`	isaac_ros_tensor_list_interfaces/TensorList	The data from this topic is used to timestamp the dummy mask.

ROS Topics Published

ROS Topic	Interface	Description
`/mask`	isaac_ros_tensor_list_interfaces/TensorList	Dummy mask is published on this topic. Which is supposed to be ingested by SegmentAnythingDataEncoderNode
