isaac_ros_cumotion

Source code on GitHub.

Motion Generation

The motion generation capabilities provided by the cuMotion planner node are exposed via a plugin for MoveIt 2. Please see the corresponding quickstart to get started.

Robot Segmentation

Quickstart

Set Up Development Environment

1. Set up your development environment by following the instructions in getting started.

2. Clone isaac_ros_common under ${ISAAC_ROS_WS}/src.

   cd ${ISAAC_ROS_WS}/src && \
      git clone -b release-3.1 https://github.com/NVIDIA-ISAAC-ROS/isaac_ros_common.git isaac_ros_common


3. (Optional) Install dependencies for any sensors you want to use by following the sensor-specific guides.

   Warning

   We strongly recommend installing all sensor dependencies before starting any quickstarts. Some sensor dependencies require restarting the Isaac ROS Dev container during installation, which will interrupt the quickstart process.

Download Quickstart Assets for Robot Segmentation

1. Download the r2b_robotarm dataset from the r2b 2024 dataset on NGC

2. Place the dataset at ${ISAAC_ROS_WS}/isaac_ros_assets/r2b_2024/r2b_robotarm.

Build isaac_ros_cumotion

Binary PackageBuild from Source

1. Launch the Docker container using the run_dev.sh script:

   cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
   ./scripts/run_dev.sh


2. Install the prebuilt Debian package:

   sudo apt-get install -y ros-humble-isaac-ros-cumotion


Run Launch File for Robot Segmentation

Rosbag

1. Continuing inside the docker container, run the following launch file to spin up a demonstration of robot segmentation for a single camera using the rosbag:

   ros2 launch isaac_ros_cumotion robot_segmentation.launch.py


2. Open a second terminal inside the Docker container:

   cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
   ./scripts/run_dev.sh


3. Run the rosbag file to simulate an image stream:

   ros2 bag play --clock -l ${ISAAC_ROS_WS}/isaac_ros_assets/r2b_2024/r2b_robotarm \
   --remap /camera_1/aligned_depth_to_color/image_raw:=/depth_image \
   camera_1/color/camera_info:=rgb/camera_info


4. Open a third terminal inside the Docker container:

   cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
   ./scripts/run_dev.sh


5. Run a static transform publisher, used by the segmentation node to determine the relative pose of the robot base:

   ros2 run tf2_ros static_transform_publisher --frame-id ar_tag --child-frame-id  base_link --x -0.30 --y 0.47 --z 0.0 --qx 0 --qy 0 --qz 0.707 --qw 0.707


Visualize Results of Robot Segmentation

1. Open a new terminal inside the Docker container:

   cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
      ./scripts/run_dev.sh


2. Visualize the robot mask in RViz:

   rviz2

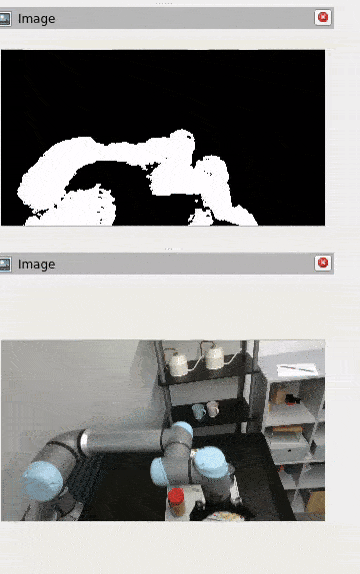

   Then click on the Add button and select By topic. In the By topic window, select the topic /cumotion/camera_1/robot_mask.

   Optionally, you can also add the camera image to the RViz window by selecting the topic /camera_1/color/image_raw. This will allow you to confirm that the robot mask correctly matches the camera image.

   Note

   Due to initial warm-up time, the visualization may take up to 1 minute to appear. During this time, the depth mask may stutter or lag behind the camera image.



Troubleshooting

Isaac ROS Troubleshooting

For solutions to problems with Isaac ROS, see troubleshooting.

API

CumotionActionServer

ROS Parameters

ROS Parameter	Type	Default	Description
robot	string	ur5e.yml	Path to the XRDF file for the robot
urdf_path	string	rclpy.Parameter.Type.STRING	Path to the robot’s URDF
time_dilation_factor	float	0.5	Speed scaling factor for the planner
collision_cache_mesh	int	20	Number of mesh objects to pre-allocate in the cuMotion world
collision_cache_cuboid	int	20	Number of cuboid objects to pre-allocate in the cuMotion world
interpolation_dt	float	0.02	Fixed time step (in seconds) used for interpolating the trajectory
voxel_dims	float array	[2.0, 2.0, 2.0]	Maximum dimensions of the voxels in meters
voxel_size	float	0.05	Size of a voxel in meters
read_esdf_world	bool	false	When true, indicates that cuMotion should read a Euclidean signed distance field (ESDF) as part of its world
publish_curobo_world_as_voxels	bool	false	When true, indicates that cuMotion should publish its world representation
add_ground_plane	bool	false	When true, indicates that cuMotion should add an implicit ground plane
publish_voxel_size	float	0.05	Voxel size to use when publishing cuMotion’s world
max_publish_voxels	int	50000	Maximum number of voxels that may be used to publish cuMotion’s world
joint_states_topic	string	/joint_states	Topic for reading the robot’s joint state
tool_frame	string	rclpy.Parameter.Type.STRING	Tool frame of the robot that should be used for planning
grid_position	float array	[0.5, 0.5, 0.5]	Grid position at which to place cuMotion’s world
esdf_service_name	string	/nvblox_node/get_esdf_and_gradient	Service to call when querying the ESDF world
enable_curobo_debug_mode	bool	false	When true, cuMotion’s backend planning library (currently cuRobo) will log additional debug messages
override_moveit_scaling_factors	bool	false	When true, the planner is allowed to override MoveIt’s scaling factors

ROS Topics Subscribed

ROS Topic	Interface	Description
joint_states_topic	sensor_msgs/JointState	Joint states of the robot

ROS Topics Published

ROS Topic	Interface	Description
/curobo/voxels	visualization_msgs/Marker	cuMotion’s world represented as voxels for visualization

ROS Services Requested

ROS Service	Interface	Description
esdf_service_name	nvblox_msgs/EsdfAndGradients	Service that takes an axis-aligned bounding box (AABB) for the planning region and returns a dense ESDF and gradient field for that region.

ROS Actions Advertised

ROS Action	Interface	Description
cumotion/move_group	moveit_msgs/MoveGroup	Creates a motion plan and forwards it to MoveIt

CumotionRobotSegmenter

ROS Parameters

ROS Parameter	Type	Default	Description
robot	string	ur5e.yml	Path to the XRDF file for the robot
urdf_path	string	rclpy.Parameter.Type.STRING	Path to the robot’s URDF
cuda_device	int	0	CUDA device index to use
distance_threshold	float	0.1	Maximum distance from a given collision sphere (in meters) at which to mask points
time_sync_slop	float	0.1	Maximum allowed delay (in seconds) for which depth image and joint state messages are considered synchronized
tf_lookup_duration	float	5.0	Maximum duration (in seconds) for which to block while waiting for a transform to become available
joint_states_topic	string	/joint_states	Topic to subscribe to for the robot’s joint states
debug_robot_topic	string	/cumotion/robot_segmenter/robot_spheres	Topic on which to publish the spheres representing the robot
depth_image_topics	string array	['/cumotion/depth_1/image_raw']	List of topics to subscribe to for input depth images
depth_camera_infos	string array	['/cumotion/depth_1/camera_info']	List of topics to subscribe to for camera info corresponding to the input depth image streams
robot_mask_publish_topics	string array	['/cumotion/depth_1/robot_mask']	List of topics on which to publish the robot segmentation masks for the corresponding depth image streams
world_depth_publish_topics	string array	['/cumotion/depth_1/world_depth']	List of topics on which to publish depth images with the robot segmented out
log_debug	bool	False	When true, increases logging verbosity to help with debugging

ROS Topics Subscribed

ROS Topic	Interface	Description
joint_states_topic	sensor_msgs/JointState	Joint states of the robot
depth_image_topics	sensor_msgs/Image	Input depth images, including the robot to be segmented out
depth_camera_infos	sensor_msgs/CameraInfo	Topics to subscribe to for the camera info corresponding to the input depth image streams

ROS Topics Published

ROS Topic	Interface	Description
debug_robot_topic	visualization_msgs/MarkerArray	Robot represented by spheres for debugging and visualization
robot_mask_publish_topics	sensor_msgs/Image	Robot segmentation masks for the corresponding depth image streams
world_depth_publish_topics	sensor_msgs/Image	Depth images with the robot segmented out
