Tutorial: Camera-based 3D Perception with Isaac Perceptor
This demo will enable you to use the Isaac Perceptor to perceive the robot’s environment - purely based on cameras. Isaac Perceptor uses Isaac ROS components, including Visual SLAM to localize the robot, ESS and nvblox to reconstruct 3D environments.
For this tutorial, it is assumed that you have successfully completed the teleop tutorial and the calibration tutorial.
Running the Application
SSH into the robot (instructions).
Make sure you have successfully connected the PS5 joystick to the robot (instructions).
Build/install the required packages and run the app:
Pull the Docker image:
docker pull nvcr.io/nvidia/isaac/nova_carter_bringup:release_3.1-aarch64
Run the Docker image:
docker run --privileged --network host \ -v /dev/*:/dev/* \ -v /tmp/argus_socket:/tmp/argus_socket \ -v /etc/nova:/etc/nova \ nvcr.io/nvidia/isaac/nova_carter_bringup:release_3.1-aarch64 \ ros2 launch nova_carter_bringup perceptor.launch.py1. Make sure you followed the Prerequisites and you are inside the Isaac ROS Docker container.
Install the required Debian packages:
sudo apt update sudo apt-get install -y ros-humble-nova-carter-bringup source /opt/ros/humble/setup.bash
Install the required assets:
sudo apt-get install -y ros-humble-isaac-ros-ess-models-install ros-humble-isaac-ros-peoplesemseg-models-install source /opt/ros/humble/setup.bash ros2 run isaac_ros_ess_models_install install_ess_models.sh --eula ros2 run isaac_ros_peoplesemseg_models_install install_peoplesemsegnet_vanilla.sh --eula ros2 run isaac_ros_peoplesemseg_models_install install_peoplesemsegnet_shuffleseg.sh --eula
Run the launch file:
ros2 launch nova_carter_bringup perceptor.launch.py1. Make sure you followed the Prerequisites and you are inside the Isaac ROS Docker container.
Use
rosdep
to install the package’s dependencies:sudo apt update rosdep update rosdep install -i -r --from-paths ${ISAAC_ROS_WS}/src/nova_carter/nova_carter_bringup/ \ --rosdistro humble -y
Install the required assets:
sudo apt-get install -y ros-humble-isaac-ros-ess-models-install ros-humble-isaac-ros-peoplesemseg-models-install source /opt/ros/humble/setup.bash ros2 run isaac_ros_ess_models_install install_ess_models.sh --eula ros2 run isaac_ros_peoplesemseg_models_install install_peoplesemsegnet_vanilla.sh --eula ros2 run isaac_ros_peoplesemseg_models_install install_peoplesemsegnet_shuffleseg.sh --eula
Build the ROS package in the Docker container:
colcon build --symlink-install --packages-up-to nova_carter_bringup \ source install/setup.bash
Run the launch file:
ros2 launch nova_carter_bringup perceptor.launch.py
You are now able to remote control the robot with the gamepad. Follow the next steps to additionally visualize the sensor outputs in Foxglove.
Customizing Sensor Configurations
By default, as specified in the launch file perceptor.launch.py
, 3 stereo
cameras available on the Nova Carter (front, left, right) are used in
Isaac Perceptor algorithms.
You may use the stereo_camera_configuration
launch argument to customize camera
configurations when running Isaac Perceptor.
For example, to use only front stereo camera for 3D reconstruction and visual SLAM, you could run the following launch command:
ros2 launch nova_carter_bringup perceptor.launch.py \
stereo_camera_configuration:=front_configuration
For example, to use only front stereo camera for 3D reconstruction, visual SLAM and people reconstruction, you could run the following launch command:
ros2 launch nova_carter_bringup perceptor.launch.py \
stereo_camera_configuration:=front_people_configuration
For a detailed description of all available configurations refer to the Tutorial: Stereo Camera Configurations for Isaac Perceptor.
Visualizing the Outputs
Make sure you complete Visualization Setup. This is required to visualize the Isaac nvblox mesh in a recommended layout configuration.
Open the Foxglove studio on your remote machine.
If you are not running a configuration with people reconstruction, open the
nova_carter_perceptor.json
layout file downloaded in the previous step.If you are running a configuration with people reconstruction, open the
nova_carter_perceptor_with_people.json
layout file downloaded in the previous step.

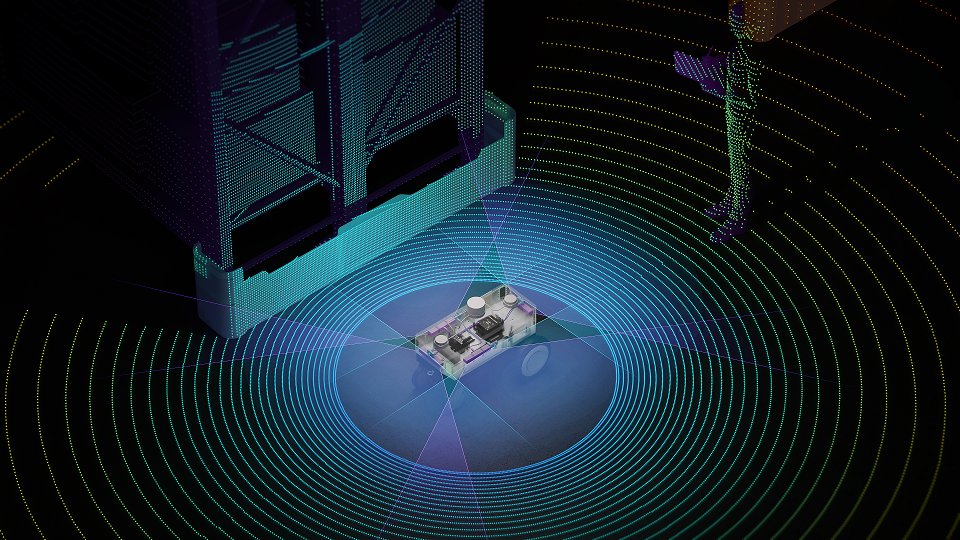

In Foxglove, it shows a visualization of the Nova Carter robot and Isaac nvblox mesh visualization of surrounding environments. You should expect a visualization similar as below. In the mesh, it shows the reconstructed colored voxels, the computed distance map from Isaac nvblox outputs. The colored voxels are uniformly reconstructed with a resolution of 5cm. The rainbow color spectrum reflects the proximity of each region to nearest obstacles. Regions closer to obstacle surfaces are marked in warmer colors (red, orange), while regions further away from obstacle surfaces are marked in cooler colors (blue, violet).
If running a configuration with people reconstruction, in addition, you can see highlighted red voxels shown in the reconstructed mesh. It visualizes people perceived in the field of view of one or more cameras. In the default
nova_carter_perceptor_with_people.json
layout file, only/nvblox_human_node/dynamic_occupancy_layer
is visualized and shown as the red voxels.
Note
For a better visualization experience, some topics requiring a large bandwidth are not available
to Foxglove studio. You can set use_foxglove_whitelist:=False
as additional argument
when running the app. Most likely the image stream will be fairly choppy given its large
bandwidth. To learn more about topics published by Isaac nvblox, you can refer to
nvblox ROS messages..
For topics published by Isaac visual SLAM, you can refer to
cuvslam ROS messages..
Evaluating Isaac Perceptor
Follow these instructions to assert that Isaac Perceptor is performing as expected.
Isaac nvblox continuously measures computation efficiency metrics and reports them in the terminal. You should expect to see metrics similar to the following:
nvblox Rates
reports how the frequencies of specific events happening in nvblox. For the 3-camera configuration, you are expected to seeros/depth_image_callback
at 60Hz, andros/color_image_callback
at 90Hz. For the 1-camera configuration, you are expected to seeros/depth_image_callback
at 30Hz, andros/color_image_callback
at 30Hz.
nvblox Rates (in Hz) namespace/tag - NumSamples (Window Length) - Mean ----------- ros/color 100 13.2 ros/depth 100 60.4 ros/depth_image_callback 100 60.8 ros/color_image_callback 100 90.8 ros/update_esdf 100 7.2 mapper/stream_mesh 100 4.5 ros/tick 100 16.7 -----------
nvblox Delays
reports the average compute time a node takes in second based on a certain number of samples. You are expected to seeros/esdf_integration
at 100 ~ 200 ms.
nvblox Delays namespace/tag - NumSamples (Window Length) - Mean Delay (seconds) ----------- ros/esdf_integration 100 0.174 ros/depth_image_integration 100 0.152 ros/color_image_integration 100 0.129 ros/depth_image_callback 100 0.106 ros/color_image_callback 100 0.068 -----------
To further evaluate the quality of Isaac Perceptor, you can perform the following tests.
Choose objects above 10cm with various heights, and place them in front of any camera specified in the
stereo_camera_configuration
launch argument. Vary the distance to the camera (e.g. 1m, 3m, 5m, 7m). You should expect to see the object in the distance map visualization. Additionally, you may also use the Measure Tool in the top panel to measure the distance between the object surface and the camera center. An example evaluation performed using the Nova Orin Developer Kit can be found in Evaluating Isaac Perceptor on the Nova Orin Developer Kit.Ensure Nova Carter is stationary. You are expected to see no drift from the Nova Carter robot visualization with reference to the odometry frame. You are advised to follow cuVSLAM to understand how Visual SLAM works.
Running Isaac Perceptor on Recorded Data
Apart from running camera-based perception on Nova Carter robot, see the Tutorial: Recording and Playing Back Data for Isaac Perceptor on how to record data on the Nova Carter robot and running Isaac Perceptor on the recorded data.
