Tutorial for Isaac ROS Visual SLAM with Segmentation Masks

Overview

This tutorial walks you through setting up Isaac ROS Visual SLAM for stereo camera pose tracking and Image Segmentation for segmenting people in an image using TensorRT

Note

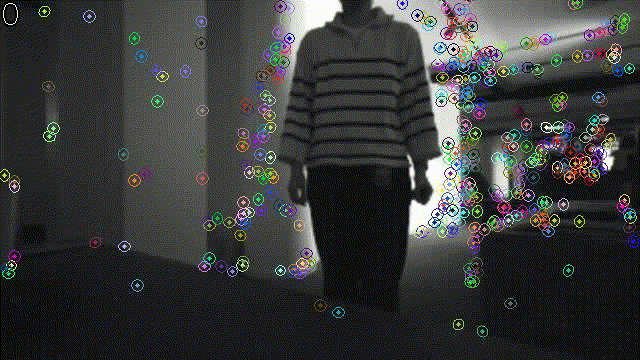

Isaac ROS Visual SLAM supports segmentation masks corresponding to the primary camera (typically the left camera in a stereo setup) as input. These masks allow to exclude visual features from consideration when tracking the pose of a stereo camera. This functionality is particularly useful for disregarding people using Segformer

Source code available on GitHub.

or other dynamic objects using SAM

Source code available on GitHub.

.

Tutorial Walkthrough - Stereo Visual SLAM Execution with People Segmentation

Live on Realsense Camera

1. Complete the RealSense setup tutorial.

2. Complete the Isaac ROS Visual Slam quickstart.

3. Complete the Image Segmentation quickstart up until running launch file step 3 for RealSense Camera tab.

4. [Terminal 1] Open a new terminal and activate the Isaac ROS environment:

isaac-ros activate

5. [Terminal 1] Inside the running container, build and source the workspace:

cd ${ISAAC_ROS_WS}
ros2 launch isaac_ros_visual_slam isaac_ros_visual_slam_realsense_mask.launch.py engine_file_path:=${ISAAC_ROS_WS}/isaac_ros_assets/models/triton/peoplesemsegformer/1/model.plan

Important

As shipped, this launch file sends the infrared stream to the DNN image encoder. The infrared stream is single-channel mono8, but PeopleSemSegFormer expects three-channel rgb8 input, so the encoder stops with a “Fatal assertion error” and Visual SLAM never receives a segmentation mask. This is a known issue and will be fixed in a future release.

To work around the issue, run segmentation on the color camera. Edit ${ISAAC_ROS_WS}/src/isaac_ros_visual_slam/isaac_ros_cuvslam/launch/isaac_ros_visual_slam_realsense_mask.launch.py and change the following arguments of encoder_node_launch:

'input_encoding': 'rgb8',
'image_input_topic': '/camera/color/image_raw',
'camera_info_input_topic': '/camera/color/camera_info',

Then add the network output layout to the parameters of segformer_decoder_node. Without it, the decoder reads the 1x1x512x512 network output as 512 channels and discards every frame:

'data_format': 'NCHW',

If you did not build the workspace with --symlink-install, rebuild isaac_ros_cuvslam before you launch the pipeline again.

Note

For Jetson Thor with a RealSense D435 camera, the launch file uses 15 FPS camera streams and a 70 ms image jitter threshold. This configuration keeps the infrared images and segmentation masks synchronized so Visual SLAM continues to publish odometry.

Tutorial Walkthrough - Visualizing the Outputs

Note

Images and landmarks visualization may impact the performance of Visual Odometry. Use visualization for debugging and demonstration purposes only. To enable landmark visualization, set the following parameters to True in the launch file: enable_slam_visualization, enable_landmarks_view, enable_observations_view

Visualization with Foxglove Studio

Note

These examples will stream the camera images in their full resolution to Foxglove Studio. This requires a substantial amount of bandwidth and is only done here for exemplary purposes. Most likely the image stream will be fairly choppy due to the large bandwidth.

1. Complete the foxglove setup guide.

2. In Foxglove Studio open the foxglove_layout_realsense_mask.json layout file, which can be found in the isaac_ros_visual_slam repository.

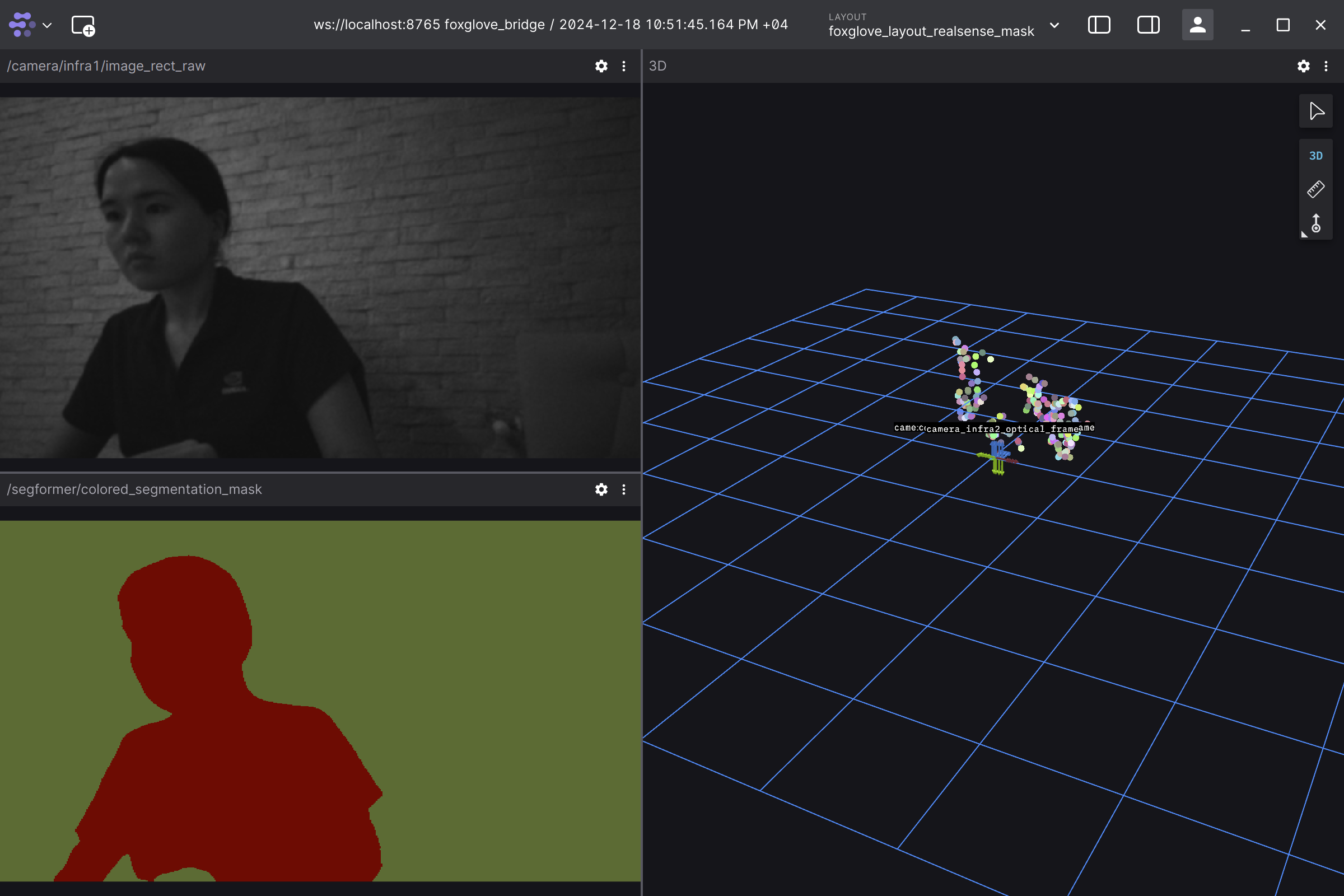

3. Validate that you can see a visualization of the images of the front left stereo camera and Segformer mask, image landmarks, camera transform tree and odometry path. You should expect a visualization similar to the following:

Visualization with RViz2

1. [Terminal 3] Open another terminal and activate the Isaac ROS environment to execute RViz2:

isaac-ros activate

2. [Terminal 3] Install RViz:

sudo apt-get install -y ros-jazzy-rviz2
source /opt/ros/jazzy/setup.bash

3. [Terminal 3] Open RViz2 from the new terminal:

source ${ISAAC_ROS_WS}/install/setup.bash
rviz2 -d $(ros2 pkg prefix isaac_ros_visual_slam --share)/rviz/vslam_segformer.rviz

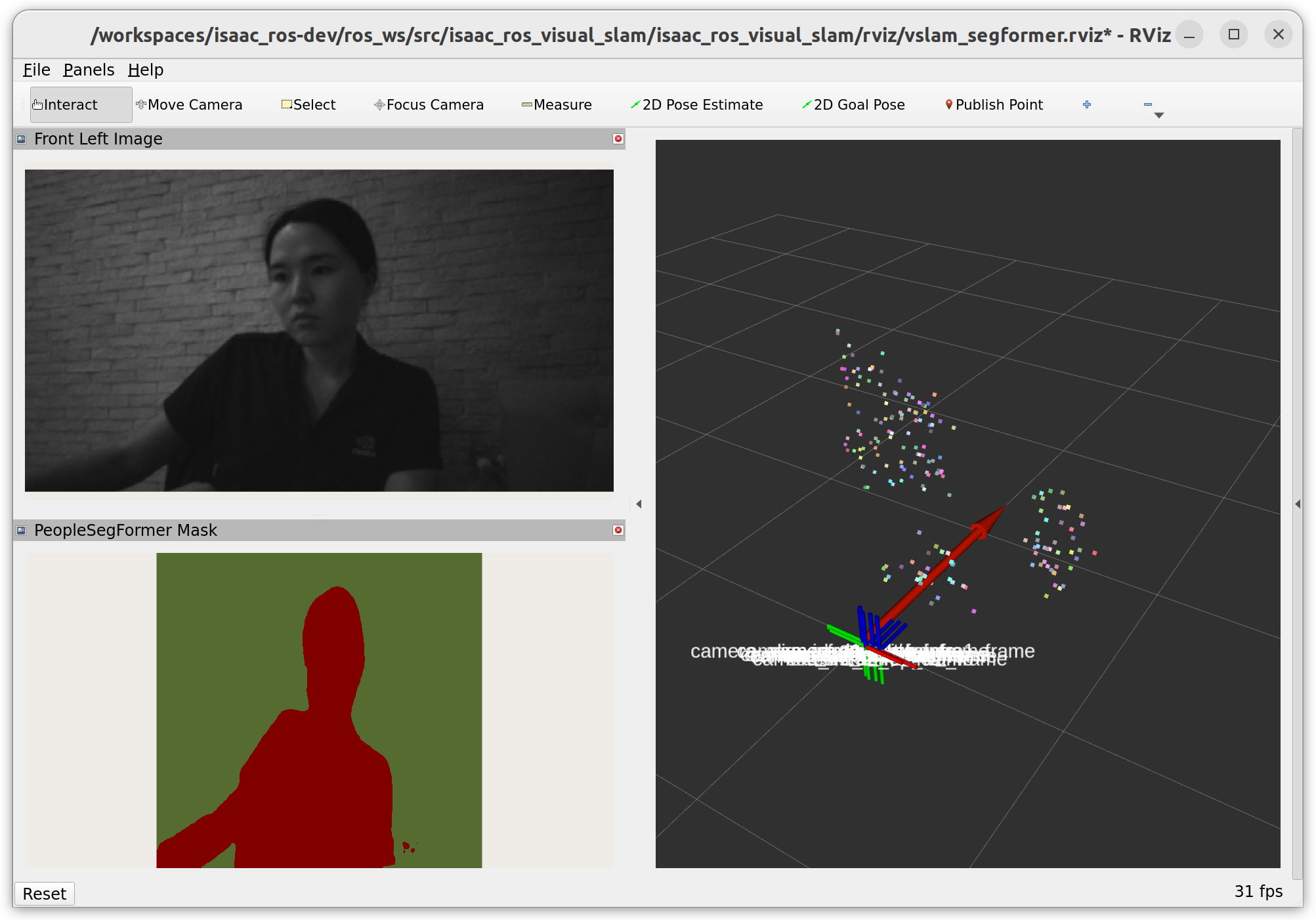

4. Validate that you can see a visualization of the images of the front left stereo camera and Segformer mask, image landmarks, camera transform tree and odometry path. You should expect a visualization similar to the following:
