Isaac ROS DNN Stereo Depth

Overview

Deep Neural Network (DNN)–based stereo models have become essential for depth estimation because they overcome many of the fundamental limitations of classical and geometry-based stereo algorithms.

Traditional stereo matching relies on explicitly finding pixel correspondences between left and right images using handcrafted features. While effective in well-textured, ideal conditions, these approaches often fail in “ill-posed” regions such as areas with reflections, specular highlights, texture-less surfaces, repetitive patterns, occlusions, or even minor camera calibration errors. In such cases, classical algorithms may produce incomplete or inaccurate depth maps, or be forced to discard information entirely, especially when context-dependent filtering is not possible.

DNN-based stereo methods learn rich, hierarchical feature representations and context-aware matching costs directly from data. These models leverage semantic understanding and global scene context to infer depth, even in challenging environments where traditional correspondence measures break down. Through training, DNNs can implicitly account for real-world imperfections such as:

• calibration errors

• exposure differences

• hardware noise

Training increases DNN’s ability to recognize and handle difficult regions like reflections or transparent surfaces. This results in more robust, accurate, and dense depth predictions.

These advances are critical for robotics and autonomous systems, enabling applications where both speed and accuracy of depth perception are essential, such as:

• precise robotic arm manipulation

• reliable obstacle avoidance and navigation

• robust target tracking in dynamic or cluttered environments

DNN-based stereo methods consistently outperform classical techniques, making them the preferred choice for modern depth perception tasks.

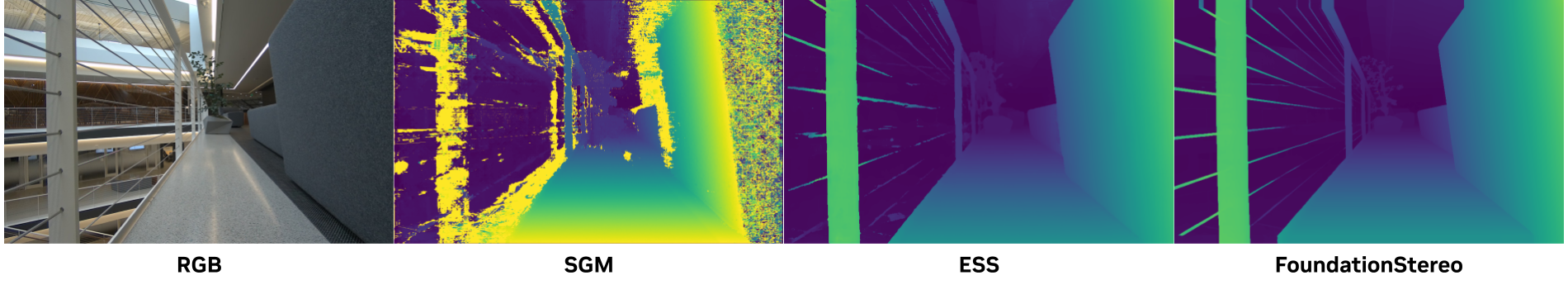

The superiority of DNN-based stereo methods is clearly demonstrated in the figure above where we compare the output from a classical stereo algorithm, SGM, with DNN-based methods, ESS, and FoundationStereo.

SGM produces a very noisy and error-prone disparity map, while ESS and FoundationStereo produce much smoother and more accurate disparity maps. A closer look reveals that FoundationStereo produces the most accurate map because it is better at handling the plant in the distance and the railings on the left with smoother estimates. Overall, you can see that FoundationStereo is better than ESS, and better than SGM, in terms of accuracy and quality.

DNN‐based stereo systems begin by passing the left and right images through shared Convolutional backbones to extract multi‐scale feature maps that encode both texture and semantic information. These feature maps are then compared across potential disparities by constructing a learnable cost volume, which effectively represents the matching likelihood of each pixel at different disparities. Successive 3D Convolutional (or 2D convolution + aggregation) stages then regularize and refine this cost volume, integrating strong local cues—like edges and textures—and global scene context—such as object shapes and layout priors—to resolve ambiguities. Finally, a soft‐argmax or classification layer converts the refined cost volume into a dense disparity map, often followed by lightweight refinement modules that enforce sub-pixel accuracy and respect learned priors (for example, smoothness within objects, sharp transitions at boundaries), yielding a coherent estimate that gracefully handles challenging scenarios where classical algorithms falter.

Applications

The vision depth perception problem is generally useful in many fields of robotics such as estimating the pose of a robotic arm in an object manipulation task, estimating distance of static or moving targets in autonomous robot navigation, tracking targets in delivery robots and so on. Isaac ROS DNN Stereo Depth is targeted at Isaac for Manipulation. ESS is deployed in Isaac ROS cuMotion package as a plug-in node to provide depth perception maps for robot arm motion planning and control. Besides these, the DNN-based stereo models, ESS and FoundationStereo, can be used in other applications supported by Isaac ROS to infer depth from stereo images obtained from a variety of sources such as Isaac Sim, RealSense camera, and ZED camera.

Quickstarts

• Isaac ROS ESS

• Isaac ROS FoundationStereo

• Isaac ROS DNN Stereo Decoder

Isaac ROS NITROS Acceleration

This package is powered by NVIDIA Isaac Transport for ROS (NITROS), which leverages type adaptation and negotiation to optimize message formats and dramatically accelerate communication between participating nodes.

ESS DNN

ESS stands for Efficient Semi-Supervised stereo disparity, developed by NVIDIA. The ESS DNN is used to predict the disparity for each pixel from stereo camera image pairs.

This network has improvements over classic CV approaches that use epipolar geometry to compute disparity, because the DNN can learn to predict disparity in cases where epipolar geometry feature matching fails. The semi-supervised learning and stereo disparity matching makes the ESS DNN robust in environments unseen in the training datasets and with occluded objects. This DNN is optimized for and evaluated with color (RGB) global shutter stereo camera images. Accuracy may vary with monochrome stereo images used in analytic computer vision approaches to stereo disparity.

It is a relatively light model that runs at near real-time speeds.

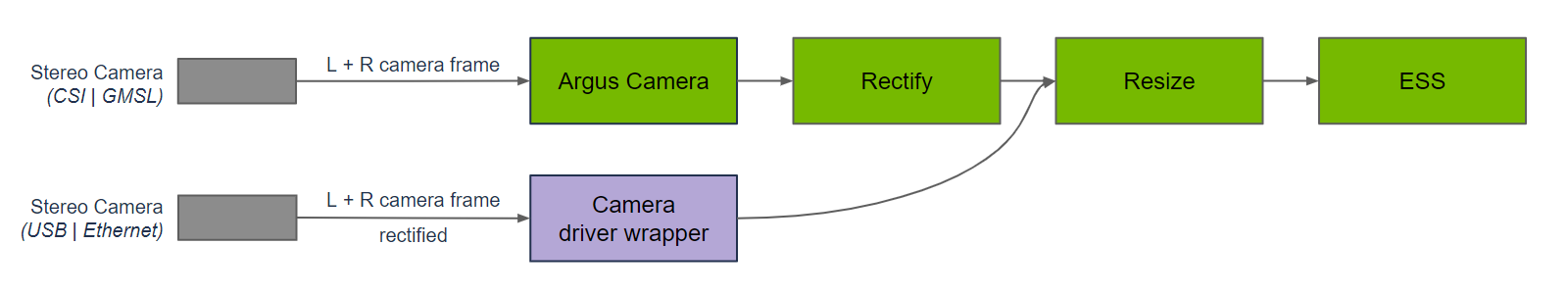

As seen in the figure, the ESS node is used in a graph of nodes to provide a disparity prediction from an input left and right stereo image pair.

The rectify and resize nodes pre-process the left and right frames to the appropriate resolution. Maintain the aspect ratio of the image to avoid degrading the depth output quality. The graph for DNN encode, DNN inference, and DNN decode is included in the ESS node. Inference is performed using TensorRT, because the ESS DNN model is designed with optimizations supported by TensorRT.

FoundationStereo DNN

FoundationStereo is a foundation model for stereo depth estimation developed by NVIDIA. It is designed to predict the disparity for each pixel from stereo camera image pairs.

FoundationStereo advances beyond traditional computer vision and earlier deep learning approaches by leveraging a transformer-based architecture and large-scale training on diverse datasets. Notably, its feature extractor incorporates depth-specific priors through the use of the Depth Anything V2 model, further enhancing its ability to generalize across scenes.

This enables the model to generalize robustly to new environments, camera types, and challenging scenarios such as varying lighting, occlusions, and non-standard camera parameters, where classic epipolar geometry or feature matching may fail.

The model is optimized for accurate and reliable disparity estimation across a wide range of domains, outperforming previous methods in both benchmark performance and zero-shot transfer to unseen datasets. The model works best with color (RGB) stereo images and accuracy may vary with monochrome stereo images.

It is a heavy model that is best-suited for applications that do not require real-time performance. For faster inference, consider using Fast-FoundationStereo, a speed-optimized variant that is a drop-in replacement. Fast-FoundationStereo achieves real-time performance through knowledge distillation, neural architecture search, and structured pruning applied to the FoundationStereo architecture, closely matching its zero-shot accuracy at significantly lower latency.

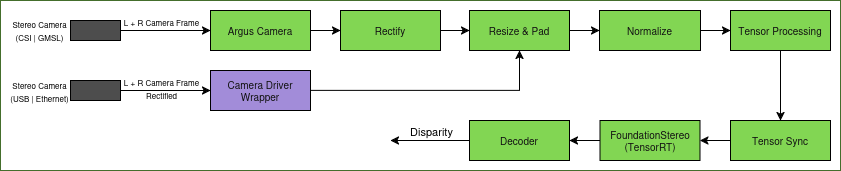

As seen in the figure, FoundationStereo is used in a graph of nodes to provide a disparity prediction from an input left and right stereo image pair. The input images may need to be rectified to handle distortions. They may also need to be resized and padded to match the input resolution of the model. The aspect ratio of the image is recommended to be maintained to avoid degrading the depth output quality.

isaac_ros_tensor_proc provides DNN encoder nodes to process the input images into Tensors for the model. Inference is performed using TensorRT, as the model is designed with optimizations supported by TensorRT.

The decoder node takes the model output and converts it into a disparity map with some post-processing.

DNN Stereo Decoder

The isaac_ros_dnn_stereo_decoder package provides a model-agnostic decoder node that converts disparity tensors from any DNN stereo depth model into NitrosDisparityImage messages.

Key features include:

• Model-agnostic: Works with any DNN that outputs a disparity tensor

• CUDA-accelerated filtering: GPU-based in-place filtering of disparity values (NaN / Inf handling, clamping)

• Optional confidence masking: Support for models that output confidence tensors (like ESS)

• NITROS-accelerated: Zero-copy data path for maximum throughput

• Flexible synchronization: ExactTime sync or camera info caching modes for different use cases

This package is ideal for users who want to integrate custom stereo depth models into their Isaac ROS pipelines or need a standalone decoder for disparity tensors.

DNN Output

The predicted disparity values represent the distance a point moves from one image to the other in a stereo image pair (the binocular image pair). The disparity is inversely proportional to the depth:

\[disparity = \frac{\mathrm{focalLength} \times \mathrm{baseline}}{\mathrm{depth}}\]

Given the focal length and baseline of the camera that generates a stereo image pair, the predicted disparity map from the isaac_ros_ess and the isaac_ros_foundationstereo packages (used for both FoundationStereo and Fast-FoundationStereo models) can be used to compute depth and generate a point cloud.

Comparing DNNs

Attribute	ESS	FoundationStereo	Fast-FoundationStereo
Outputs	Disparity map & confidence map (used for filtering disparity)	Disparity map only	Disparity map only
Resolution	576 x 960 & 288 x 480 (Light ESS)	576 x 960 & 320 x 736	576 x 960 & 320 x 736
Parameter Count	17 million	60.6 million	12.4 million
BP2 (Middlebury 576x960)	8.27	2.981	6.196
MAE (Middlebury 576x960)	1.06	0.553	0.942
Throughput (Thor 576x960)	50.632 FPS (FP32) / 126.601 FPS (FP16)	0.651 FPS (FP32)	7.057 FPS (FP32)
Applications	Use-cases where real-time depth estimates are required.	Use-cases where quality of predictions is more crucial than speed and some latency is acceptable.	Use-cases that need faster inference than FoundationStereo with significantly better accuracy than ESS, where near-real-time performance and high-quality depth are both important.

In the above table, BP2 measures the percentage of bad pixels which deviate more than the threshold value of 2 pixels from the ground truth. MAE measures the mean absolute error. Lower BP2 and MAE values indicate better performance.

DNN Models

ESS

An ESS model is required to run isaac_ros_ess. NGC provides pre-trained models for use in your robotics application. ESS models are available on NGC, providing robust depth estimation.

Click here for more information on how to use NGC models.

Confidence and Density

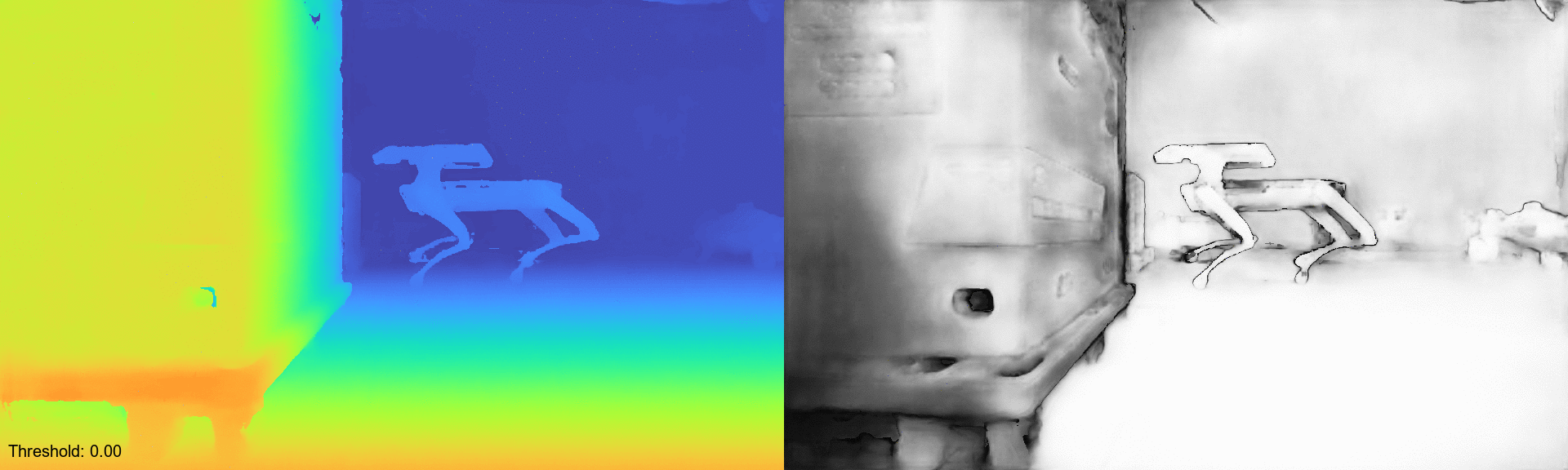

ESS DNN provides two outputs: disparity estimation and confidence estimation. The disparity output can be filtered, by thresholding the confidence output, to trade-off between confidence and density. isaac_ros_ess filters out pixels with low confidence by setting:

disparity[confidence < threshold] = -1  # -1 means invalid

The choice of threshold value is dependent on use case.

Resolution and Performance

NGC provides ESS and Light ESS models for trade-off between resolution and performance. A detailed comparison of the two models can be found here.

Model Name	Disparity Resolution
ESS	Estimate disparity at 1/4 HD resolution
Light ESS	Estimate disparity at 1/16 HD resolution

DNN Plugins

ESS TensorRT custom plugins are used to optimize the ESS DNN for inference on NVIDIA GPUs. The plugins work with custom layers added in ESS model and they are not natively supported by TensorRT. ESS prebuilt plugins are available for Jetson Thor and x86_64 platforms. The plugins are used during the conversion of the ESS model to TensorRT engine plan, as well as during TensorRT inference. ESS TensorRT custom plugins are available for download from NGC together with ESS models.

FoundationStereo

A FoundationStereo or Fast-FoundationStereo model can be used to run isaac_ros_foundationstereo. Pre-trained FoundationStereo models are available on NVIDIA NGC, and Fast-FoundationStereo models are available from the Fast-FoundationStereo GitHub repository for robust depth estimation in robotics applications.

Note

Fast-FoundationStereo is a research model and is not intended for commercial use. For commercial applications, use FoundationStereo.

Disparity Output

FoundationStereo and Fast-FoundationStereo both provide a single output:

disparity estimation

Unlike ESS models, FoundationStereo and Fast-FoundationStereo do not output a confidence map. As a result, there is no confidence-based filtering of the disparity output. All estimated disparity values are provided directly by the model.

Resolution and Performance

FoundationStereo models are available on NGC, and Fast-FoundationStereo models are available from GitHub, providing a trade-off between accuracy and performance. Fast-FoundationStereo is a drop-in replacement—users only need to replace the ONNX/engine model file path in their launch commands.

Model Name	Disparity Resolution
FoundationStereo	576x960 and 320x736
Fast-FoundationStereo	576x960 and 320x736

For details on available FoundationStereo models, refer to the NGC FoundationStereo page. For details on Fast-FoundationStereo models, refer to the Fast-FoundationStereo GitHub repository.

Packages

• isaac_ros_dnn_stereo_decoder
  • Quickstart
  • Troubleshooting
  • API
• isaac_ros_ess
  • Quickstart
  • Try More Examples
  • Troubleshooting
  • API
• isaac_ros_foundationstereo
  • Quickstart
  • Try More Examples
  • API

Supported Platforms

This package is designed and tested to be compatible with ROS 2 Jazzy running on Jetson, an x86_64 system with an NVIDIA GPU, or a DGX Spark workstation. Other GB10 based platforms may function, but are not part of the test matrix and we cannot guarantee their behavior.

Platform	Hardware	Software	Storage	Notes
Jetson	Jetson Thor (T5000 and T4000)	JetPack 7.1	128+ GB NVMe SSD	For best performance, ensure that power settings are configured appropriately.
x86_64	Ampere or higher NVIDIA GPU Architecture with 8 GB RAM or higher	Ubuntu 24.04	32+ GB disk space available	CUDA 13.0+ NVIDIA Driver 580+
DGX	DGX Spark	DGX OS 7.2.3	32+ GB disk space available	For best performance, use the supplied power adapter with the DGX Spark system.

Isaac ROS Environment

To simplify development, we strongly recommend leveraging the Isaac ROS CLI by following these steps. This streamlines your development environment setup with the correct versions of dependencies on all supported platforms.

Note

All Isaac ROS Quickstarts, tutorials, and examples have been designed with the Isaac ROS CLI-managed environment as a prerequisite.

Customize your Dev Environment

To customize your development environment, refer to this guide.

Updates

Date	Changes
2026-07-06	Added DNN stereo decoder package, ported ESS workflows away from GXF and updated FoundationStereo workflows to use the new decoder
2026-07-06	Added Fast-FoundationStereo model support as a drop-in replacement for FoundationStereo with faster inference
2026-04-30	Compatibility and integration updates for the Isaac ROS 4.4.0 release
2026-03-23	Introduced early-stage support for SIPL camera framework and LI Eagle stereo CoE/HSB camera with ROS
2026-02-19	Updated FoundationStereo model to v2.0
2026-02-02	Support for two new Docker-optional development and deployment modes
2025-10-24	Added FoundationStereo package
2024-09-26	Updated for ESS 4.1 trained on additional samples
2024-05-30	Updated for ESS 4.0 with fused kernel plugins
2023-10-18	Updated for ESS 3.0 with confidence thresholding in multiple resolutions
2023-05-25	Upgraded model (1.1.0)
2023-04-05	Source available GXF extensions
2022-10-19	Updated OSS licensing
2022-08-31	Update to be compatible with JetPack 5.0.2
2022-06-30	Initial release
