Tutorial for Visual SLAM Using a RealSense Camera in RGBD mode

Overview

This tutorial demonstrates how to set up Isaac ROS Visual SLAM with a RealSense camera in RGBD mode.

Note

The launch file provided in this tutorial is designed for RealSense cameras with an integrated depth estimation engine. We strongly recommend using this mode for RealSense cameras that support synchronization between the RGB sensor and depth sensor. For cameras without hardware synchronization (such as the RealSense D435), you may experience FPS drops, as weakly-synchronized depth-image pairs may be discarded.

Note

This tutorial requires a compatible RealSense camera. Please refer to the camera compatibility list for supported models.

Tutorial Walkthrough - VSLAM Execution

1. Complete the RealSense setup tutorial.

2. Complete the quickstart here.

3. [Terminal 1] Run realsense-camera node and visual_slam node.

   Make sure you have your RealSense camera attached to the system, and then start the Isaac ROS container.

   isaac-ros activate


4. [Terminal 1] Inside the container, build and source the workspace:

   cd /workspaces/isaac_ros-dev && \
     colcon build --symlink-install && \
     source install/setup.bash


5. [Terminal 1] Run the launch file to start the RealSense camera and Visual SLAM nodes:

   ros2 launch isaac_ros_visual_slam isaac_ros_visual_slam_realsense_rgbd.launch.py


6. [Terminal 2] Attach a second terminal to verify the operation.

   Attach another terminal to the running container for issuing other ROS commands:

   isaac-ros activate


   Verify that you can see all the ROS topics expected:

   ros2 topic list


   Expected output:

   /camera/aligned_depth_to_color/camera_info
   /camera/aligned_depth_to_color/image_raw
   /camera/aligned_depth_to_color/image_raw/compressed
   /camera/aligned_depth_to_color/image_raw/compressedDepth
   /camera/aligned_depth_to_color/image_raw/nitros
   /camera/aligned_depth_to_color/image_raw/theora
   /camera/aligned_depth_to_color/image_raw/zstd
   /camera/color/camera_info
   /camera/color/image_raw
   /camera/color/image_raw/compressed
   /camera/color/image_raw/compressedDepth
   /camera/color/image_raw/nitros
   /camera/color/image_raw/theora
   /camera/color/image_raw/zstd
   /camera/color/metadata
   /camera/depth/camera_info
   /camera/depth/image_rect_raw
   /camera/depth/image_rect_raw/compressed
   /camera/depth/image_rect_raw/compressedDepth
   /camera/depth/image_rect_raw/theora
   /camera/depth/image_rect_raw/zstd
   /camera/depth/metadata
   /camera/extrinsics/depth_to_color
   /diagnostics
   /parameter_events
   /rosout
   /tf
   /tf_static
   /visual_slam/initial_pose
   /visual_slam/status
   /visual_slam/tracking/odometry
   /visual_slam/tracking/slam_path
   /visual_slam/tracking/vo_path
   /visual_slam/tracking/vo_pose
   /visual_slam/tracking/vo_pose_covariance
   /visual_slam/trigger_hint
   /visual_slam/vis/gravity
   /visual_slam/vis/landmarks_cloud
   /visual_slam/vis/localizer
   /visual_slam/vis/localizer_loop_closure_cloud
   /visual_slam/vis/localizer_map_cloud
   /visual_slam/vis/localizer_observations_cloud
   /visual_slam/vis/loop_closure_cloud
   /visual_slam/vis/observations_cloud
   /visual_slam/vis/pose_graph_edges
   /visual_slam/vis/pose_graph_edges2
   /visual_slam/vis/pose_graph_nodes
   /visual_slam/vis/slam_odometry
   /visual_slam/vis/velocity


   Check the output frequency of the realsense-camera RGB topic:

   ros2 topic hz /camera/color/image_raw --window 20


   Example output:

   average rate: 56.729
               min: 0.016s max: 0.034s std dev: 0.00369s window: 20
   average rate: 59.532
               min: 0.017s max: 0.034s std dev: 0.00314s window: 20


   Press Ctrl + C to stop the output.

   You can also check the output frequency of the aligned depth topic:

   ros2 topic hz /camera/aligned_depth_to_color/image_raw --window 20


   Example output:

   average rate: 59.399
                 min: 0.017s max: 0.018s std dev: 0.00020s window: 20
   average rate: 59.431
                 min: 0.015s max: 0.019s std dev: 0.00047s window: 20


   Verify that the visual_slam node is producing output at the same rate as the input:

   ros2 topic hz /visual_slam/tracking/odometry --window 20


   Example output:

   average rate: 58.086
                 min: 0.012s max: 0.019s std dev: 0.00309s window: 20
   average rate: 59.556
                 min: 0.012s max: 0.021s std dev: 0.00220s window: 20
   average rate: 56.812
                 min: 0.015s max: 0.029s std dev: 0.00282s window: 20


Tutorial Walkthrough - Live Visualization

Run RViz2 while the realsense-camera and visual_slam nodes are running.

Note

Running RViz2 on a remote PC over the network can be challenging, especially when subscribing to image topics, due to the increased burden on ROS 2 network transport. Working with RViz2 in an X11-forwarded window can also be difficult due to network bandwidth limitations.

1. In a new terminal, activate the Isaac ROS environment:

   isaac-ros activate


2. Install RViz:

   sudo apt-get install -y ros-jazzy-rviz2
   source /opt/ros/jazzy/setup.bash

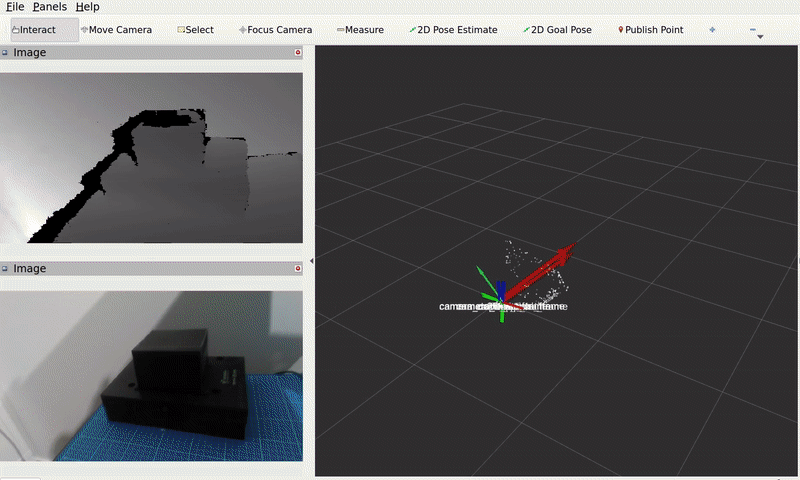

3. Open RViz2 with the RealSense RGBD configuration:

   source ${ISAAC_ROS_WS}/install/setup.bash
   rviz2 -d $(ros2 pkg prefix isaac_ros_visual_slam --share)/rviz/realsense_rgbd.cfg.rviz


As you move the camera, verify that the position and orientation of the frames correspond to the camera’s movement relative to its starting pose.
