Tutorial for Multi-Object Pick and Place using cuMotion with Perception#

Multi object pick and place example.

Overview#

This tutorial walks through running the multi-object Pick and Place workflow on your robot. The Pick and Place reference workflow has been tested on NVIDIA® Jetson Thor™ (128 GB).

What You’ll Be Doing:

  • Configure the orchestration system for your objects and workspace

  • Launch perception and motion planning nodes

  • Execute autonomous Pick and Place operations

  • Monitor workflow execution with behavior tree visualization

Note

For conceptual understanding and more details, refer to:

Tutorial Steps#

  1. Follow the setup instructions in Setup Hardware and Software for Real Robot.

Object Requirements#

Ensure that you have one of the NGC catalog objects that can be grasped, for example sdetr_grasp. This tutorial uses the Mac and Cheese Box and the Soup Can.

If you are using FoundationPose, for the desired object, ensure that you have a mesh and a texture file available for it.

To prepare an object, review FoundationPose documentation.

Configure Your Workflow#

Prepare Configuration Files and Environment Variables#

Before editing any configuration files, copy them to the appropriate location and set up environment variables based on your installation method. This section handles all configuration file preparation (workflow config, behavior tree parameters, and blackboard parameters) and sets up environment variables for simplified command usage.

Binary installations have read-only configuration files in system directories. Copy all necessary files to a writable location:

# Create a directory for your custom configuration
mkdir -p ${ISAAC_ROS_WS}/isaac_manipulator_config

Copy the workflow configuration file for your robot:

cp $(ros2 pkg prefix --share isaac_manipulator_bringup)/params/ur5e_robotiq_85_mac_and_cheese.yaml \
   ${ISAAC_ROS_WS}/isaac_manipulator_config/my_robot_config.yaml

cp $(ros2 pkg prefix --share isaac_manipulator_bringup)/params/ur10e_robotiq_2f_140_mac_and_cheese.yaml \
   ${ISAAC_ROS_WS}/isaac_manipulator_config/my_robot_config.yaml

Copy behavior tree and blackboard parameter files:

cp $(ros2 pkg prefix --share isaac_manipulator_pick_and_place)/params/multi_object_pick_and_place_behavior_tree_params.yaml \
   ${ISAAC_ROS_WS}/isaac_manipulator_config/multi_object_pick_and_place_behavior_tree_params.yaml

cp $(ros2 pkg prefix --share isaac_manipulator_pick_and_place)/params/multi_object_pick_and_place_blackboard_params.yaml \
   ${ISAAC_ROS_WS}/isaac_manipulator_config/multi_object_pick_and_place_blackboard_params.yaml

Files you’ll edit:

  • Workflow configuration:

${ISAAC_ROS_WS}/isaac_manipulator_config/my_robot_config.yaml

  • Behavior tree parameters:

${ISAAC_ROS_WS}/isaac_manipulator_config/multi_object_pick_and_place_behavior_tree_params.yaml

  • Blackboard parameters:

${ISAAC_ROS_WS}/isaac_manipulator_config/multi_object_pick_and_place_blackboard_params.yaml

Set up environment variables:

# Point to the directory containing your configuration files
export ISAAC_MANIPULATOR_WORKFLOW_CONFIG_DIR="${ISAAC_ROS_WS}/isaac_manipulator_config"
export ISAAC_MANIPULATOR_PICK_AND_PLACE_CONFIG_DIR="${ISAAC_ROS_WS}/isaac_manipulator_config"

When building from source with --symlink-install, you can edit configuration files directly in the source directories.

Files you’ll edit:

  • Workflow configuration:

    ${ISAAC_ROS_WS}/src/isaac_manipulator/isaac_manipulator_bringup/params/ur5e_robotiq_85_mac_and_cheese.yaml

    ${ISAAC_ROS_WS}/src/isaac_manipulator/isaac_manipulator_bringup/params/ur10e_robotiq_2f_140_mac_and_cheese.yaml

  • Behavior tree parameters:

${ISAAC_ROS_WS}/src/isaac_manipulator/isaac_manipulator_pick_and_place/params/multi_object_pick_and_place_behavior_tree_params.yaml

  • Blackboard parameters:

${ISAAC_ROS_WS}/src/isaac_manipulator/isaac_manipulator_pick_and_place/params/multi_object_pick_and_place_blackboard_params.yaml

Set up environment variables:

# Point to the source directories containing the configuration files
export ISAAC_MANIPULATOR_WORKFLOW_CONFIG_DIR="${ISAAC_ROS_WS}/src/isaac_manipulator/isaac_manipulator_bringup/params"
export ISAAC_MANIPULATOR_PICK_AND_PLACE_CONFIG_DIR="${ISAAC_ROS_WS}/src/isaac_manipulator/isaac_manipulator_pick_and_place/params"

Edit Workflow Configuration File#

Edit the workflow configuration file to set your robot and camera configuration.

Reference documentation:

ur5e_robotiq_85_mac_and_cheese.yaml

ur10e_robotiq_2f_140_mac_and_cheese.yaml

  1. Set workflow_type: PICK_AND_PLACE and configure your camera_type:

    Set camera_type to REALSENSE in your configuration file.

    Note

    For parameter details and model combinations, refer to the Manipulation Workflow Configuration Guide.

Configure Objects and Workspace#

Edit the behavior tree and blackboard parameter files (prepared in Prepare Configuration Files and Environment Variables) to configure the objects your robot will manipulate and define workspace parameters.

Reference documentation:

Note

The example configurations are pre-configured for SyntheticaDETR v1.0.0 with specific class IDs: Mac and Cheese box ('22') and Soup can ('3'). If you’re using a different detection model or objects, you’ll need to update these class IDs to match your model’s output.

For detailed configuration instructions covering object setup, workspace locations, and system parameters, refer to the Pick and Place Configuration Guide.

Configuration Checklist

Verify these settings in your behavior tree and blackboard parameter files before launching:

  • Objects: supported_objects match scene objects with correct class_ids and valid grasp/mesh file paths

  • Workspace: target_poses and home_pose are safe and reachable

  • Mode: 0 = single bin, 1 = multi-bin sorting

  • Drop method: YAML defaults, action goal, or RViz marker correction

  • System: Action server names and startup_server_timeout_sec match your setup

Important

Configuration changes require restarting the orchestration system. The behavior tree loads these parameters at startup and does not dynamically reload configuration files during execution.

Tip

Testing Configuration Without Hardware: If you want to verify your configuration setup before proceeding to hardware, refer to the standalone quickstart in isaac_manipulator_pick_and_place. This uses dummy servers to test that your behavior tree logic and configuration files work correctly.

Tip

Set pose_estimation.base_frame_id (usually base_link) and pose_estimation.camera_frame_id in the behavior tree parameters. For recommended values and examples (RealSense and Isaac Sim), see the Configuration Guide.

Note

Please run the Driver and Hardware Tests to make sure your robot drivers are in a good state.

Launch the System#

  1. Set up networking (in each terminal):

    export ROS_DOMAIN_ID=<ID_NUMBER>  # Avoid network interference
export RMW_IMPLEMENTATION=rmw_cyclonedds_cpp  # Better performance

  2. On the UR teach pendant: Load the remote program and ensure that robot is paused or stopped for safety purposes.

  3. (Optional) Open another terminal and launch the behavior tree viewer:

    isaac-ros activate
py-trees-tree-viewer

    Note

    The behavior tree viewer provides real-time visualization of tree structure, node states (SUCCESS/green, FAILURE/red, RUNNING/blue), blackboard variables (object queue, active object ID, drop poses), and timeline replay for debugging workflow execution.

    Warning

    Running the py-trees-tree-viewer GUI on Jetson Thor may impact workflow performance due to shared compute and GPU resources. Consider using it for debugging only when needed.

  4. Open another terminal and launch the main workflow with your configuration:

    isaac-ros activate

  5. Source the workspace (required if at least one package was built from source in previous steps):

    source install/setup.bash

  6. Launch the workflow using the environment variable set earlier:

    ros2 launch isaac_manipulator_bringup workflows.launch.py \
   manipulator_workflow_config:=${ISAAC_MANIPULATOR_WORKFLOW_CONFIG_DIR}/my_robot_config.yaml

    ros2 launch isaac_manipulator_bringup workflows.launch.py \
   manipulator_workflow_config:=${ISAAC_MANIPULATOR_WORKFLOW_CONFIG_DIR}/ur5e_robotiq_85_mac_and_cheese.yaml

    ros2 launch isaac_manipulator_bringup workflows.launch.py \
   manipulator_workflow_config:=${ISAAC_MANIPULATOR_WORKFLOW_CONFIG_DIR}/ur10e_robotiq_2f_140_mac_and_cheese.yaml

Execute Pick and Place#

  1. On the UR teach pendant: Press play to enable the robot.

  2. Trigger the workflow with an action goal:

    All objects to one location:

    ros2 action send_goal --feedback /multi_object_pick_and_place isaac_manipulator_interfaces/action/MultiObjectPickAndPlace \
  '{target_poses: {header: {frame_id: "base_link"}, poses: [{position: {x: -0.25, y: 0.45, z: 0.50}, orientation: {w: 0.017994, x: -0.677772, y: 0.734752, z: 0.020993}}]}, class_ids: [], mode: 0}'

    Warning

    Update these example poses with positions safe and reachable in your robot’s workspace.

    Refer to API Reference for complete action interface documentation.

Pick and Place with Foundation Stereo and Static Planning Scene#

This section demonstrates how to run a pick and place workflow using Foundation Stereo for depth estimation, with nvblox disabled (recommended) and a static planning scene loaded from a MoveIt scene file. This configuration is ideal for scenarios where:

  • High-quality depth estimation is required but real-time performance is not critical

  • The environment is static and well-known (e.g., a fixed workspace)

  • You want to reduce computational overhead by using pre-defined collision objects

  • You need more accurate depth estimation for precise manipulation tasks

The section uses the following components:

Key Differences from Standard Pick and Place#

This tutorial differs from the standard pick and place workflow in several important ways:

  1. Foundation Stereo Depth Estimation: Uses the more accurate but computationally intensive Foundation Stereo model instead of ESS

  2. Disabled nvblox: No dynamic 3D scene reconstruction, relying instead on static collision objects (though this is not a hard requirement - users can also enable nvblox to see it work with Foundation Stereo)

  3. Static Planning Scene: Uses a MoveIt scene file to define static obstacles and workspace boundaries

  4. Reduced Real-time Requirements: Foundation Stereo runs at lower frame rates but provides higher quality depth

Create Static Planning Scene#

  1. Create a MoveIt scene file for your workspace. This file defines static collision objects:

    In the RViz window that opens, click on Displays > MoveIt > Motion Planning. You should see a new panel added to the left side of the RViz window titled Motion Planning.

    https://media.githubusercontent.com/media/NVIDIA-ISAAC-ROS/.github/release-4.0/resources/isaac_ros_docs/reference_workflows/isaac_for_manipulation/manipulator_rviz_display_motion_planning.png/

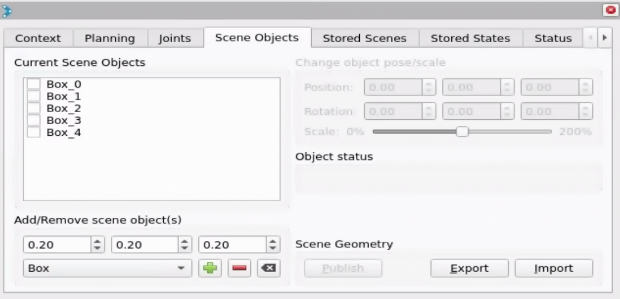

    In MoveIt’s RViz interface, obstacles may be added in the “Scene Objects” tab. Supported geometric primitives are: ‘box’, ‘sphere’, and ‘cylinder’.

    Scene file can be exported from MoveIt’s RViz interface using ‘Export’ button, and the path to the scene file can be set in the configuration file in the moveit_collision_objects_scene_file parameter.

    https://media.githubusercontent.com/media/NVIDIA-ISAAC-ROS/.github/release-4.0/resources/isaac_ros_docs/reference_workflows/isaac_for_manipulation/manipulator_scene_objects.png/

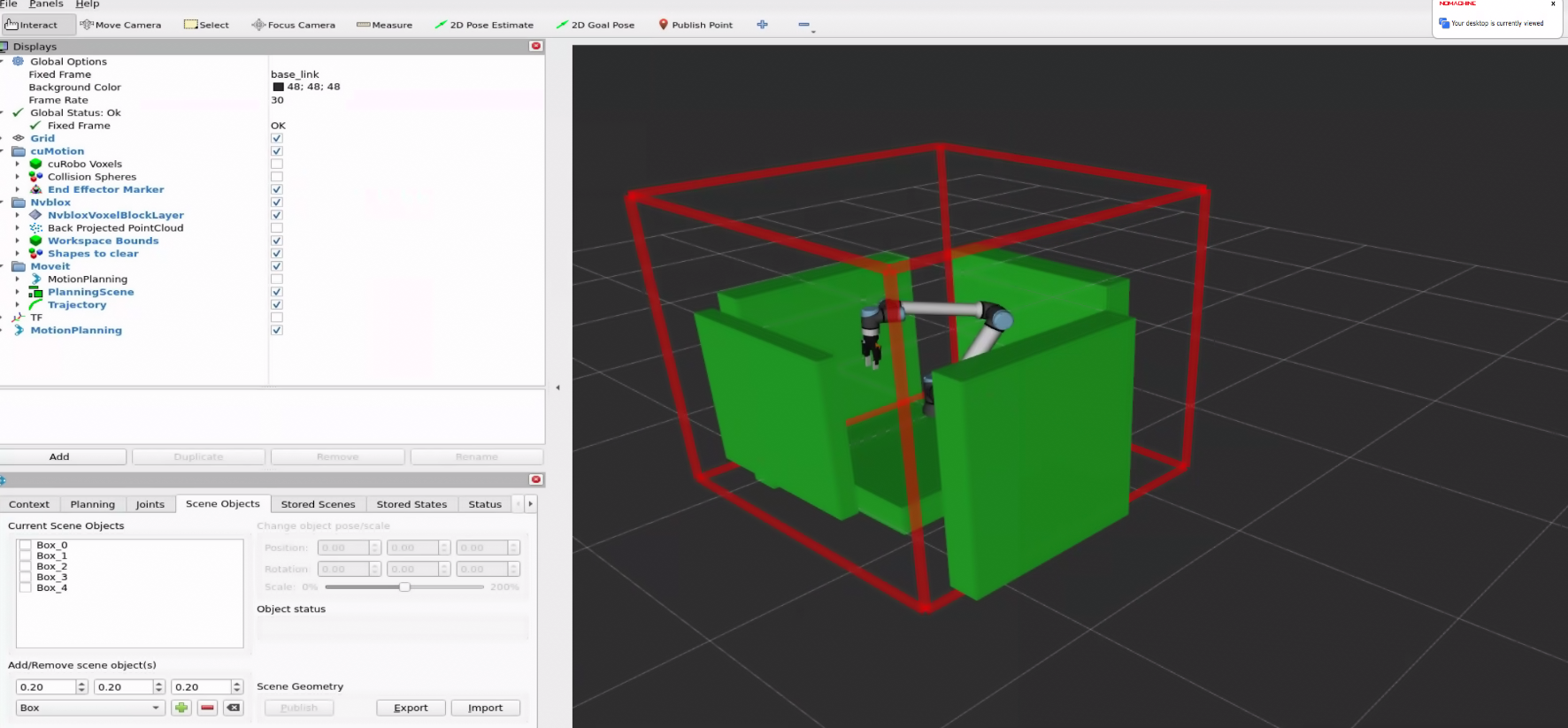

    Once the scene file is exported and set in the moveit_collision_objects_scene_file parameter, the static planning scene will be loaded at launch once cuMotion is ready for planning queries.

    https://media.githubusercontent.com/media/NVIDIA-ISAAC-ROS/.github/release-4.0/resources/isaac_ros_docs/reference_workflows/isaac_for_manipulation/manipulator_static_planning_scene.png/

Configure the Workflow#

  1. Edit the configuration file to enable Foundation Stereo and disable nvblox, and set the path to the scene file:

    # $(ros2 pkg prefix --share isaac_manipulator_bringup)/params/ur10e_robotiq_2f_140_mac_and_cheese_foundation_stereo.yaml

# Depth estimation configuration
depth_type: 'FOUNDATION_STEREO'  # Use Foundation Stereo instead of ESS
enable_nvblox: false  # Disable nvblox for static planning scene
# The user can run nvblox with FoundationStereo by enabling nvblox but the environment representation can be old (since the FoundationStereo model can take over 1-2 seconds to generate a depth image)

# Foundation Stereo configuration
foundation_stereo_engine_file_path: '${ISAAC_ROS_WS}/isaac_ros_assets/models/foundationstereo/deployable_foundation_stereo_small_v1.0/foundationstereo_320x736.engine'

# Static planning scene configuration
moveit_collision_objects_scene_file: '<path_to_your_scene_file>'

Launch the Pick and Place Workflow with Foundation Stereo#

We recommend setting a ROS_DOMAIN_ID via export ROS_DOMAIN_ID=<ID_NUMBER> for every new terminal where you run ROS commands, to avoid interference with other computers in the same network (ROS Guide).

We recommend using Cyclone DDS for this tutorial when trying on real robot for better performance.

  1. To enable Cyclone DDS, run the following command in each terminal (once) before running any other command.

    export RMW_IMPLEMENTATION=rmw_cyclonedds_cpp

  2. Launch the Foundation Stereo pick and place workflow:

    ros2 launch isaac_manipulator_bringup workflows.launch.py \
  manipulator_workflow_config:=$(ros2 pkg prefix --share isaac_manipulator_bringup)/params/ur10e_robotiq_2f_140_mac_and_cheese_foundation_stereo.yaml

  3. Wait for the terminal log to show cuMotion is ready for planning queries!

  4. Open another terminal and activate the Isaac ROS environment:

    isaac-ros activate

  5. To enable Cyclone DDS, run the following command in each terminal.

    export RMW_IMPLEMENTATION=rmw_cyclonedds_cpp

  6. On the UR teach pendant, press play to enable the robot.

  7. Set the drop pose:

    When launching the ROS graph earlier, use_pose_from_rviz is set to True which creates an interactive marker that can be used to set the drop pose. Use the marker controls to set the desired position and orientation. In this mode, the drop pose in the below command is ignored. The below command can be otherwise used to set the drop pose to a desired pose; the example below is for a drop pose at x=-0.25, y=0.45, z=0.50, and orientation w=0.018, x=-0.678, y=0.735, z=0.021. Note that the pose must be specified with respect to the base link frame.

    ros2 topic pub /target_pose geometry_msgs/msg/PoseStamped '{header: {frame_id: "base_link"}, pose: {position: {x: -0.25, y: 0.45, z: 0.50}, orientation: {w: 0.018, x: -0.678, y: 0.735, z: 0.021}}}' --once

Why does my robot fail to move ?#

This issue can occur due to a variety of reasons, but we detail the most common reasons here in order of priority.

  1. Ghost Voxels due to poor depth estimation: If the user has enabled NvBlox, the depth estimation can have some false positives and can add ghost voxels to the environment. The user can visualize the depth voxel cloud from NvBlox on Rviz or Foxglove and verify that this is the case. The user can experiment with better depth estimation by using the ESS_FULL or FOUNDATION_STEREO models by changing the depth_type and enable_dnn_depth_in_realsense parameters in the manipulator configuration file. You can also turn off NvBlox and generate a static planning scene from a MoveIt scene file.

  2. Ghost Voxels due to poor calibration: If the user has performed a poor calibration, then the robot can potentially think it is in self collision with the environment - leading to planning failures.

  3. Pose Estimation: If the object is not being detected or in a position that is not accessible to the robot- planning failures can occur. The user should take a look at the pose estimation that is output and verify that it is correct. Quite often the mesh files and segmentation mask being generated might not be accurate and so the user is expected to take care that they are referencing the correct mesh files in their manipulator workflow configuration file.

  4. System Load: If the user is running a heavy system load, then the system can fail in non obvious ways. An example is when the user is running with 2 cameras with FOUNDATION_STEREO depth estimation and NvBlox enabled, this can lead to slowdowns and in some cases cameras shutting down. Please verify that the system is not overloaded by looking at the NITROS diagnostics and verifying all topics are being published and received by the system. One might need to over throttle the system or reduce the frame rate of the cameras.
